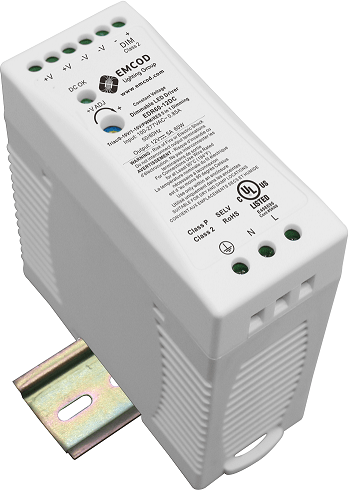

Emcod 110V-277V 60W 12V DC Universal Input Voltage | 5 in 1 Dimmable LED Driver

EmcodSKU: EDR60-12DC

Price:
Sale price$125.00

Shipping calculated at checkout

Stock:
In stock

Description

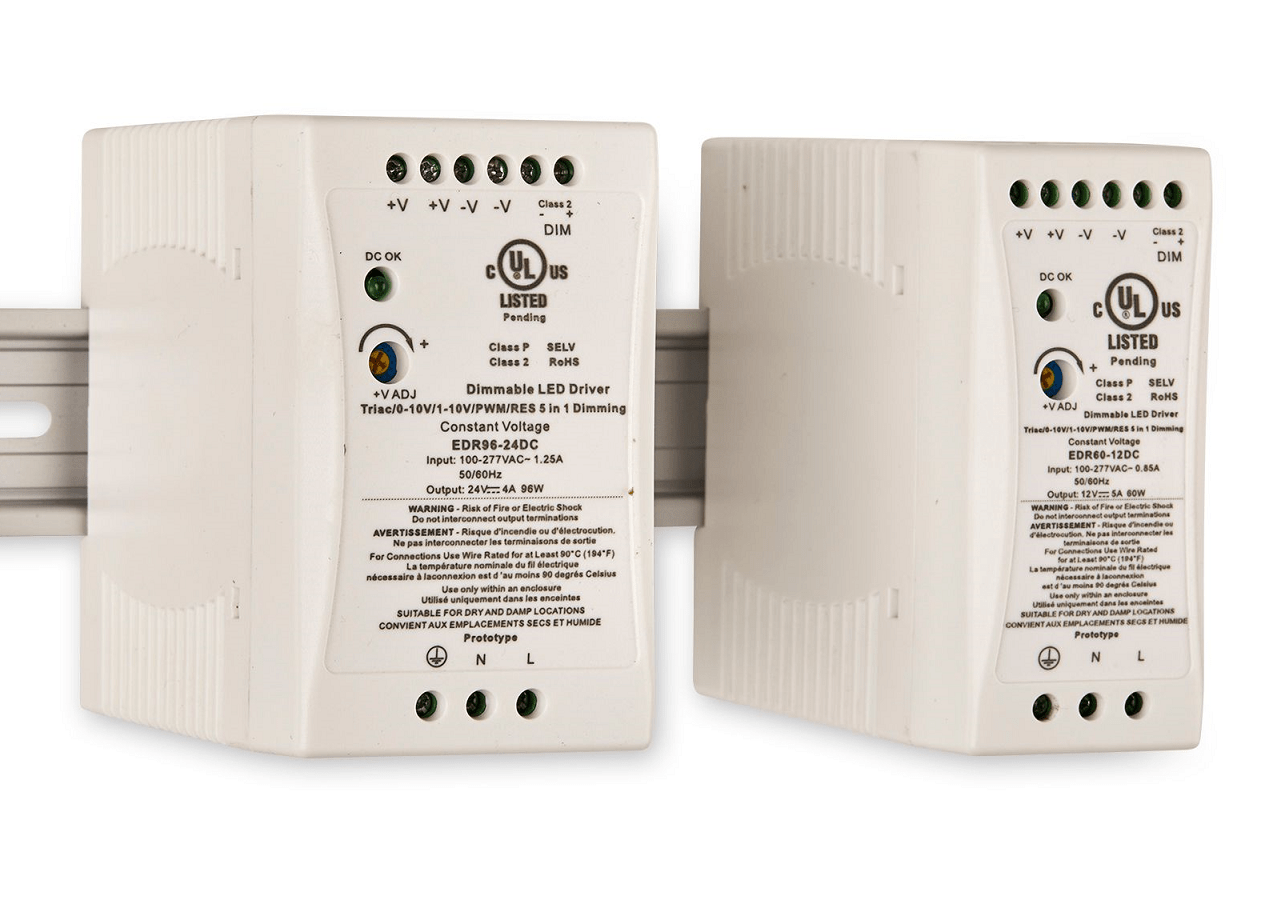

EDR - EMCOD Din Rail Universal Driver EDR ELECTRONIC UNIVERSAL DRIVER Series is Universal Constant Voltage, PWM output, Triac (Phase), 0/1-10V, Resistor, PWM Control, 5 in 1 Dimmable Electronic LED Driver. 5% minimum load. Overload, Short circuit, and Thermal protection. Operating temperature -40C ~ +60C. Excellent Line and Load regulation. Wide variety of compatible dimmers, flicker free dimming. Dry and Damp Location. Plastic case for Din Rail installation.
Wattage: 60W, 96W and 100W
Output Voltage: 12V, 24V and 48V PWM 4kHz frequency
Input Voltage: 100V-277V range
All: UL8750 Listed for US and Canada. Class 2 for 12V 60W and for 24V  96W, class P

Part number Wattage Output Voltage Input Voltage Class 2 Terminal Block Secondary Breaker Num. of circuits

EDR60-12DC
60 12VDC 4kHz PWM 100-277V 50/60Hz single

EDR60-24DC
60 24VDC 4kHz PWM 100-277V 50/60Hz single

EDR96-24DC
96 24VDC 4kHz PWM 100-277V 50/60Hz single

EDR100-12DC
100 12VDC 4kHz PWM 100-277V 50/60Hz single
