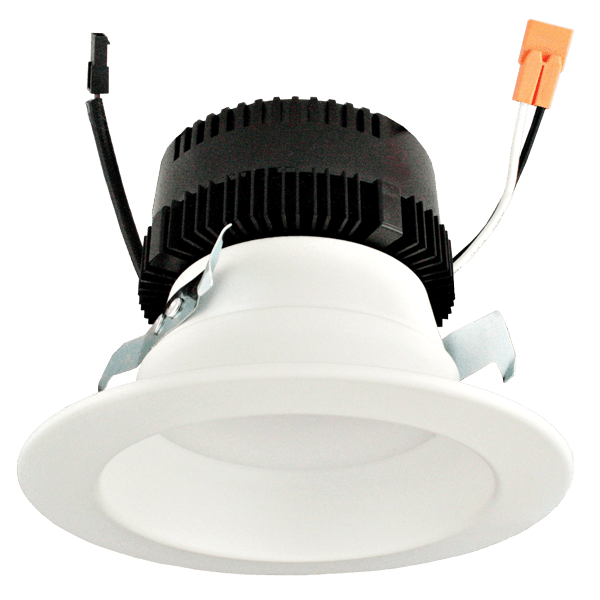

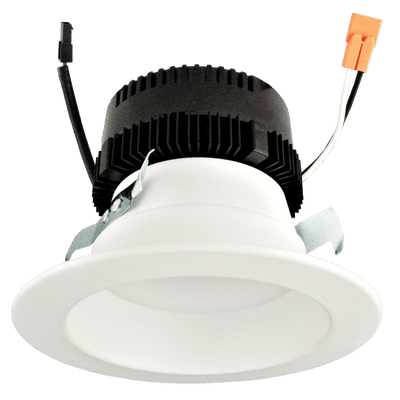

Elco Ply System 4 0-10V LED Inserts with 5-CCT and 3-Lumen Switch

Elco LightingSKU: EL475CT5DW

Finish: White
Price:
Sale price$66.06

Shipping calculated at checkout

Stock:
In stock

Description

9.5, 13.5, 18W, 2700K, 3000K, 3500K, 4000K, 5000K, 850, 1000, 1500 lm

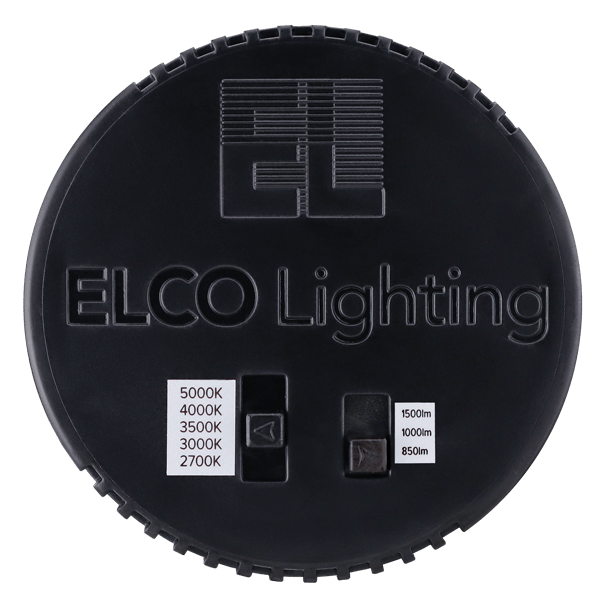

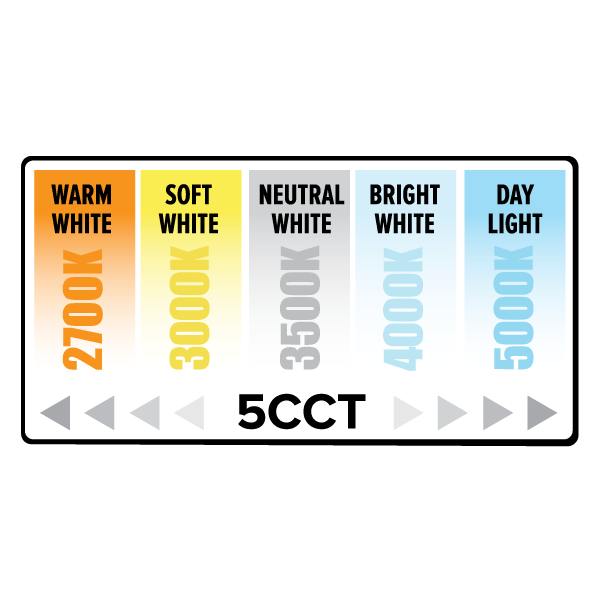

This unique Ply System 0-10V dimmable LED Insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Switch to desired Color Temperature (2700K, 3000K, 3500K, 4000K or 5000K) and Lumen Output (850 lm, 1000 lm, 1500 lm) by using manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.

Product Features

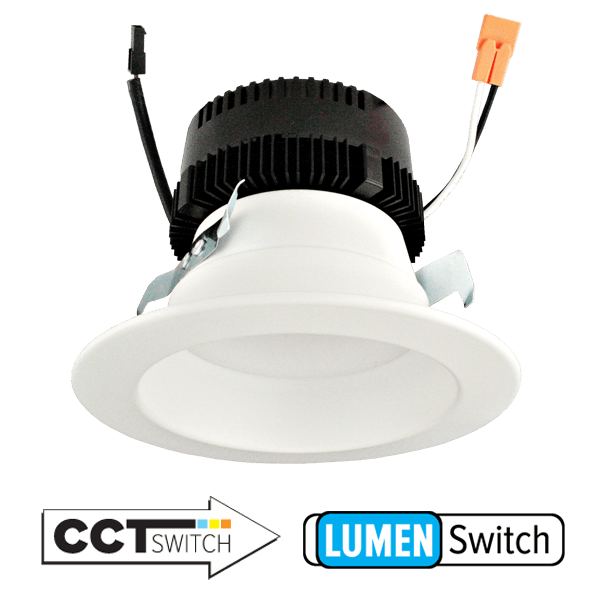

  • Manual switch to choose desired Color Temperature and Lumen Output
  • 0-10V Dimmable
  • 120/277V Driver
  • Soft white lens provides smooth lumen distribution and eliminates LED pixilation
  • Deep set LED trim reduces glare while providing even illumination
  • 90+ CRI for extremely accurate color rendering
  • CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
  • Life span of 50,000 hours L70
  • Patent Pending
Specifications
  • Wattage: 9.5, 13.5, 18W
  • Lumens: 850, 1000, 1500 lm
  • Voltage: 120/277V
  • Color Temp.: 2700K, 3000K, 3500K, 4000K, 5000K
  • Dimmable: 0-10V
  • Lamp Type: LED
  • CRI: 90+
  • Wet Location: Listed
Catalog Number Lamp type Wattage CCT Lumens Voltage Dimming Finish

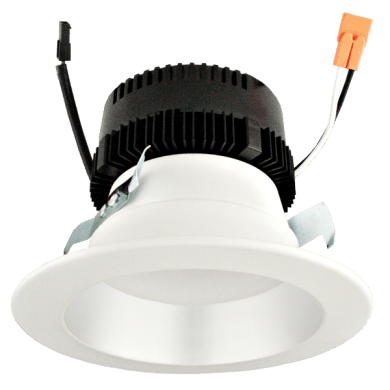

EL475CT5DW LED 9.5, 13.5, 18W 2700K, 3000K, 3500K, 4000K, 5000K 850, 1000, 1500 lm 120/277V 0-10V All White

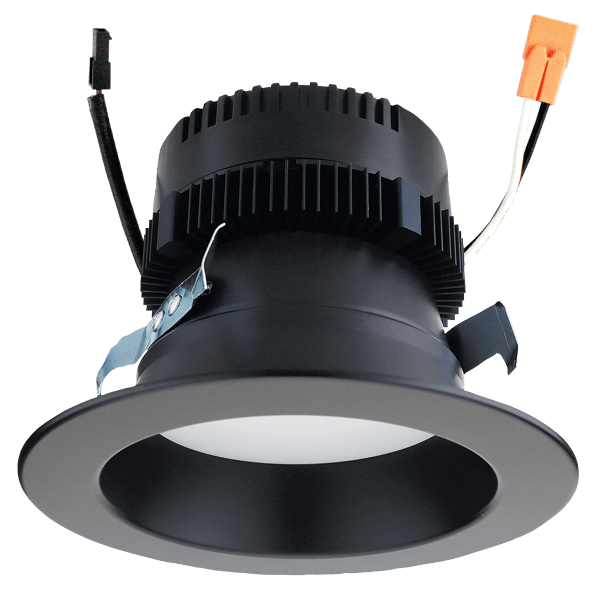

EL475CT5DBB LED 9.5, 13.5, 18W 2700K, 3000K, 3500K, 4000K, 5000K 850, 1000, 1500 lm 120/277V 0-10V All Black
EL475CT5DHW LED 9.5, 13.5, 18W 2700K, 3000K, 3500K, 4000K, 5000K 850, 1000, 1500 lm 120/277V 0-10V Haze/White Ring
