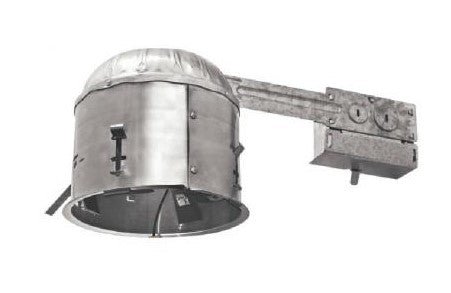

ELCO Lighting RR9ICA 6 Inch Airtight IC Shallow Remodel Housing, Lamp Type Medium Base (E26), 75W, 120V

ELCO Lighting 6 Inch Airtight IC Shallow Remodel Housing, Lamp Type Medium Base (E26), Watts 75W, Voltage 120V

Features:

6" Airtight IC Shallow Housing for direct contact with
ceiling insulation.
For use in shallow ceilings where 2 x 6 joist construction
is used.
Integral thermal protector guards against improper
lamping.
Adjustable socket bracket allows for different lamp
types/sizes and proper and consistent lamp positioning.
Four remodel clips secure housing and accommodate
various ceiling thickness.
Pre-wired junction box provided with 1/2" and 3/4"
knockouts and with removable access plates.
Lamp: PAR.
UL Listed for damp location and for feed through.

Specifications:

Wattage 75W
Voltage 120V
Lamp Type Medium Base (E26)
Damp Location Listed

Technical Details
Construction:
‚¬¢ IC rated for direct contact with insulation, for use in IC or non-IC conditions.
‚¬¢ Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
‚¬¢ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
‚¬¢ Aluminum housing for greater heat dissipation.

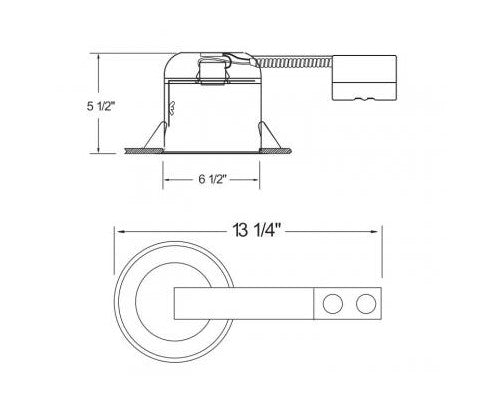

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. Maximum hole cutout is 6 1/2".
See installation sheet for detailed information.
Electrical:
‚¬¢ Input Voltage: 120V AC.
‚¬¢ Thermally protected against improper lamping.
Trims: Compatible with ELCO 6" Line Voltage PAR trims.
Lamp: Designed for use with Medium Base (E26) PAR lamps up to 75W.
Listings:
‚¬¢ UL Listed for Damp Location.
‚¬¢ UL Listed for Feed Through.
‚¬¢ UL Listed for Direct Contact with Insulation and Combustible Material.
‚¬¢ Airtight per ASTM E-283.
‚¬¢ Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
