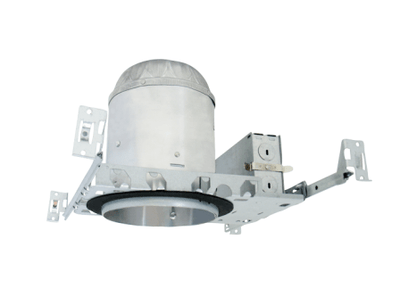

Elco Lighting LUT-EL5ICA-G24 5" Airtight IC Housing with GU24 Socket for Ketra, Lamp Type GU24, 27W, 120V

Elco Lighting 5" Airtight IC Housing with GU24 Socket for Ketra, Lamp Type GU24, Wattage 27W, Voltage 120V

FEATURES:

Airtight Housing for insulated ceilings.
Lamp: GU24
Compatible with the Ketra S30 Downlight Trim
Meets CA Title 24 standards with qualified lamps.
UL Listed for damp location and for feed through.

Specifications:

Wattage 27W
Voltage 120V
Lamp Type GU24
Damp Location Listed

Construction:
 IC rated for direct contact with insulation, for use in IC or non-IC conditions.
 Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
 Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
 Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.

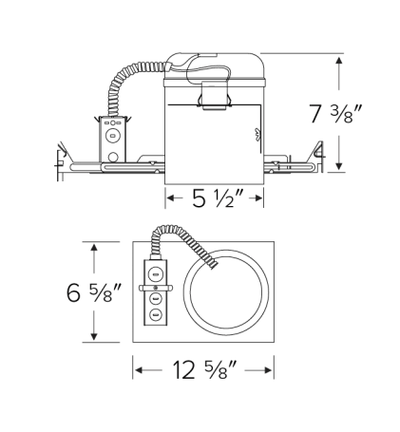

Installation: Designed for ceiling plenums where 2x8 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 5 1/2". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size pryout conduit
knockouts, 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber,
engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-grids. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with the joists.

Electrical:
 Input Voltage: 120V AC.
 Thermally protected against improper lamping.

Trims: Compatible with the Ketra S30 Downlight Trim.

Listings:
 UL Listed for Damp Location.
 UL Listed for Feed Through.
 UL Listed for Direct Contact with Insulation and Combustible Material.
 Airtight per ASTM E-283.
 Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
