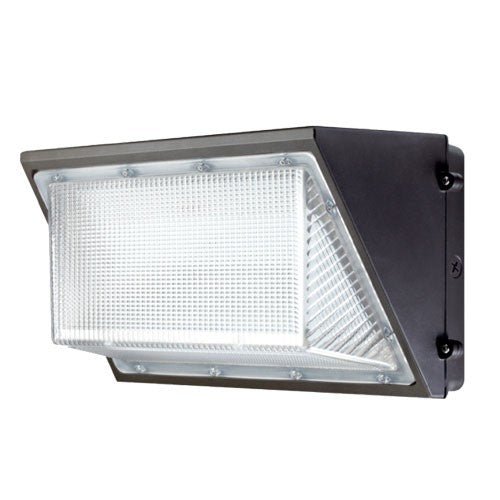

LED Large Wall Packs

FEATURES :

Non-Dimmable or 0-10V Dimming.
Die-cast Aluminum Housing, polycarbonate lens.
Easily removed mounting knockouts and J-box pattern
panel plate.
Standard input wattage: 90W (250W Metal Halide
Equivalent) and 135W (400W Metal Halide Equivalent).
J-box or direct wall mount for surface conduit (back
mount).
see Compatible Products for all Accessories.

SPECIFICATION :

• Wattage 90W - 135W

• Lumens 10900 lm - 16400 lm

• Voltage 120/277V

• Color Temp. 4000K - 5000K

• Dimmable 0-10V

• Lamp Type LED

• CRI 80+

• Power Factor > 0.9

• Wet Location Listed

Lamp:
SMD LED, CRI 80+

Optics:
Shatterproof polycarbonate lens diffuses light evenly throughout space.

Construction:
Die-cast aluminum housing. Impact, corrosion, and UV resistant.

Installation:
3/4" knockout points on the side and top for surface conduit supply or photocell connection.

Electrical:
Constant current 120/277V AC Class 2 Driver with a power factor > 0.9. Ambient operating

temperature:
-40°F (-40ºC) to 113°F (45°C). Standard input wattage: 90W (250W Metal Halide Equivalent) and 135W (400W Metal Halide Equivalent)

Dimmability (Optional):
Works with 0-10V type dimmers. For full list of dimmers, refer to the dimmer
compatability list.

Listings:
UL Listed for wet location. DLC listed. LM-80 certified. IP65 rated.

Warranty:
ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.
