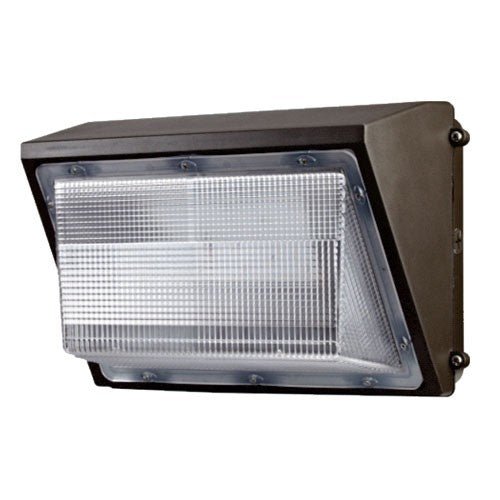

LED Medium Wall Packs

FEATURES :

• Non-Dimmable or 0-10V Dimming.

• Die-cast Aluminum Housing, polycarbonate lens.

• Easily removed mounting knockouts and J-box pattern panel
  plate.

• Standard input wattage: 45W (100W Metal Halide

• Equivalent), 70W (150W Metal Halide Equivalent), and 90W
  (200W Metal Halide Equivalent).

• J-box or direct wall mount for surface conduit (back mount).

• See compatible products for all accessories.


SPECIFICATION :

• Wattage 45W - 90W

• Lumens 5200 lm - 11200 lm

• Voltage 120/277V

• Color Temp. 4000K - 5000K

• Dimmable 0-10V

• Lamp Type LED

• CRI 80+

• Power Factor > 0.9

• Wet Location Listed

Lamp:
SMD LED, CRI 80+

Optics:
Shatterproof polycarbonate lens.

Construction:
Die-cast aluminum housing with dark bronze powder coated finish.
Impact and corrosion resistant.

Installation:
3/4" knockout points on the side and top for surface conduit supply or photocell connection.
Hinges for easy installation.

Electrical:
Constant current 120/277V AC Class 2 Driver with a power factor > 0.9. Ambient operating
temperature: -40°F (-40ºC) to 113°F (45°C).

Dimmability
(Optional): Works with 0-10V type dimmers. For full list of dimmers, refer to the dimmer
compatability list.

Listings:
UL listed for wet location. DLC listed. LM-80 certified. IP65 rated.

Warranty:
ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.
