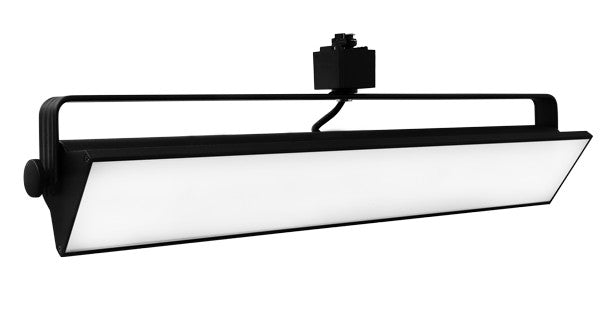

ELCO Lighting ETW4230B LED Pipe Wall Wash Track Fixture 20W, 3000K, 1400lm - Black Finish

LED Pipe Wall Wash Track Fixture

FEATURES :

• Frosted lens for even light distribution

• Polycarbonate adapter with copper conductor

• 90º tilt, 358º rotation

• 50,000 hours life-span

• Optional front louver available


SPECIFICATION :

• Wattage 20W - 58W

• Lumens 1400 lm - 4300 lm

• Voltage 120V

• Color Temp. 3000K - 4000K

• Dimmable Yes

• Lamp Type LED

• CRI 90+

Construction:
Die-cast Aluminum Driver Housing for exceptional heat management and lasting quality.
Powder coat architectural white and architectural black matte finishes.

Adjustability:
90° vertical adjustment 358° rotation.

Optics:
Frosted lens for even light distribution.

Installation:
Use with ELCO 120V Single or Double Circuit Track.

Dimmability:
Triac and ELV dimmable down to 10%.
Flicker-Free Dimming.
For full list of dimmers refer to the Dimmer Compatibility List.

Electrical:
Driver is rated for 120V input.
High Efficient driver with a power factor > 0.9.

Listings:
U.L. listed.

Warranty:
ELCO Products are built to last. 5-year Limited warranty.
