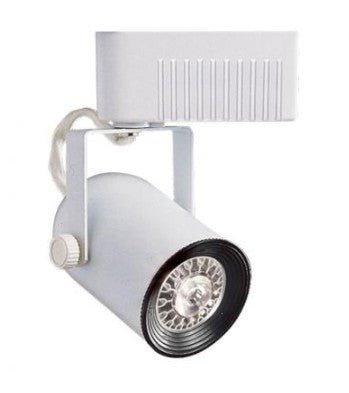

Low Voltage LED Anchor Track Fixture

FEATURES :

• Metal housing with Gimbal Ring.

• 90° vertical adjustment, 358° rotation.

• Use with ELCO 120V Single or Double Circuit Track.

• Lamp: 50W Max, 12V GU/GX5.3 MR16 LED or MR16

• Halogen (not included).

• Lamp Holder: MR16 GU/GX5.3.

• Driver/Transformer: 120V/12V/3W-50W Electronic AC,

• reverse phase dimmable.


SPECIFICATION :

• Wattage 50W

• Voltage 12V

• Dimmable: Triac

• Damp Location: Listed

Construction:
Meticulously manufactured track fixture with a clean powder coated finish for lasting quality.

Adjustability:
Track head is adjustable 180° vertically with 358° rotation.

Lamp:
Compatible with BiPin GU5.3 LED and non-LED MR16 lamps up to 60W. (Lamp not included).

Installation:
Effortlessly installed into H-Style track from ELCO or others. Compatible with Single and Double circuit track. Can be ordered as J-Style or L-Style.

Electrical:
Solid state electronic Low Voltage Transformer is compatible with LED and non-LED 3W to 60W lamps. Designed for noiseless operation. Transformer is designed to be compatible with LED MR16 lamps to eliminate minimum load and flickering issues.

Dimmability:
Works with 120V electronic low voltage rated dimmers. Dims down to 10%. For full list of
dimmers, refer to the Dimmer Compatibility List.

Listings:
ETL Listed
RoHS Compliant
