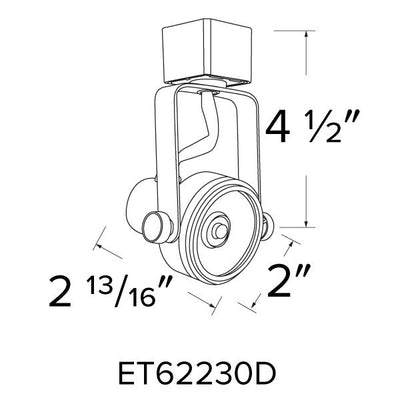

ELCO Lighting ET62230DB LED Highpoint Track Fixture 10W 3000K 700lm 120V - Black Finish

LED Highpoint Track Fixture

FEATURES :

Solid diecast aluminum fixture
90° tilt, 358° rotation
38º Beam Angle Standard
Optional lenses for Highpointž¢ (ET623D): EP724C (12°)
or EP725 (24°) available. Optional Lenses Highpointž¢
(ET62430D): EP726C (12°) or EP727C (24°) available.
Hex Louver for Highpointž¢ (ET622D): EP322W (White)
or EP322B (Black) available. Hex Louver for Highpointž¢
(ET623D): EP323W (White) or EP323B (Black)
available. Hex Louver for Highpointž¢ (ET624D):
EP324W (White) or EP324B (Black) available.

SPECIFICATION :

• Wattage 10W - 20W

• Lumens 700 lm - 1500 lm

• Voltage 120V

• Color Temp. 3000K - 4000K

• Beam Angle 38°

Construction:
Full diecast construction for exceptional heat management and lasting quality. Powder coat
architectural white and architectural black matte finishes.

Adjustability:
Track head is adjustable 90° tilt with 358° rotation.

Optics: Lens provides smooth lumen output at standard 38°. Optional lenses for Highpointž¢ (ET623D): EP724C (12°) or EP725 (24°) available. Optional Lenses Highpointž¢ (ET62430D): EP726C (12°) or EP727C (24°) available.

Installation:
Effortlessly installed into H-Style track from ELCO or others. Compatible with Single and Double circuit track. Can be ordered as J-Style or L-Style.

LED Technology:
Extremely accurate Color Rendering Index of 90+ CRI. Efficacy of over 81 lumens per
watt. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Instant On to Full Brightness technology. Chip on Board LED design results in a smooth lumen output with no LED pixelation.

Dimmability:
Triac and ELV dimmable down to 10%. For full list of dimmers refer to the Dimmer
Compatibility List.

Electrical:
Driver is rated for 120V input. High Efficiency driver with a power factor > 0.9

Listings:
ETL Listed. RoHS Compliant.

Warranty:
ELCO Products are built to last. 5-year Limited warranty
