Product details

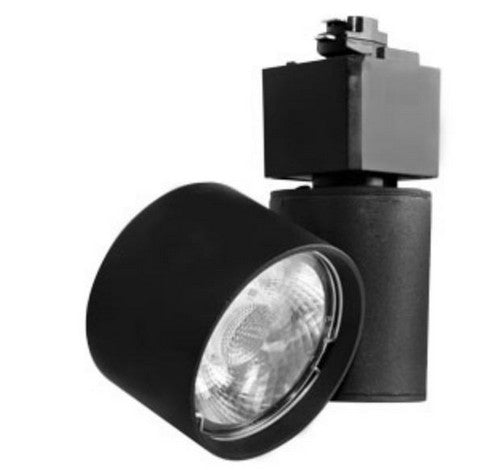

Description

Features:

  • Solid diecast aluminum fixture
  • Integrated driver
  • 90° tilt, 358° rotation
  • 50,000 hours life-span
  • 38° Beam Angle Standard
  • Optional lenses for Gordian„¢ (ET61830D & ET61930D): EP719C (15°) or EP720 (24°)
  • available. Optional Lenses Gordian„¢ (ET620D): EP722C (15°) or EP723C (24°)
  • available.

SPECIFICATIONS :

  • Wattage 10W - 40W
  • Lumens 750 lm - 3150 lm
  • Voltage 120V
  • Color Temp. 3000K - 4000K
  • Lamp Type LED
  • Beam Angle 38°

Construction: Full diecast construction for exceptional heat management and lasting quality. Powder coat architectural white and architectural black matte finishes.

Adjustability: Track head is adjustable 90° tilt with 358° rotation.

Optics: Lens provides smooth lumen output at standard 38°. Optional lenses for Gordian„¢ (ET61830D & ET61930D): EP719C (15°) or EP720 (24°) available. Optional Lenses Gordian„¢ (ET620D): EP722C (15°) or EP723C (24°) available.

Installation: Effortlessly installed into H-Style track from ELCO or others. Compatible with Single and Double
circuit track. Can be ordered as J-Style or L-Style.
LED Technology: Extremely accurate Color Rendering Index of 90+ CRI. Efficacy of over 81 lumens per
watt. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Instant On to Full
Brightness technology. Chip on Board LED design results in a smooth lumen output with no LED pixelation

Dimmability: Triac and ELV dimmable down to 10%. For full list of dimmers refer to the Dimmer Compatibility List

Electrical: Driver is rated for 120V input. High Efficiency driver with a power factor > 0.9
Listings: ETL Listed. RoHS Compliant

Warranty: ELCO Products are built to last. 5-year Limited warranty.
