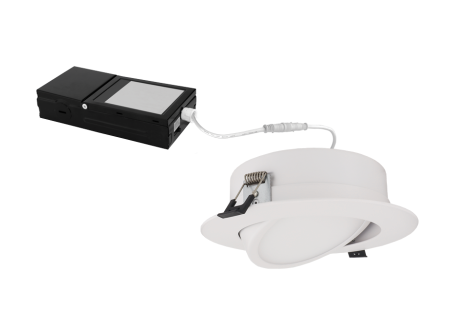

Elco Lighting ERT613CT5DXW 6" LED Recessed Gimbal Downlight with 5-CCT Switch, 900lm - White Finish

Our 4" Dimmable LED Recessed Gimbal Downlight is designed for quick and easy installation without a housing for both new construction and remodel applications, giving you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. IC-Rated for use with direct contact with insulation.

SPECIFICATIONS:

• Wattage 15W

• Lumens 900 lm

• Voltage 120/277/347V

• Color Temp. 2700K, 3000K, 3500K, 4000K, 5000K

• Dimmable 0-10V/Triac/ELV

• Lamp Type LED

• CRI 90+

• Damp LocationListed


FEATURES:

• Adjustable Gimbal offers 25º tilt range

• IC Airtight for use with direct contact to insulation.

• Designed to fit in plenums as shallow as 3".

• Eliminates the need for housing.

• New Construction application requires mounting plate or frame.

• Remodel applications require no additional accessories.

• Wet Location allows for use indoors or outdoors.

• ETL listed

• Includes driver and Jbox
