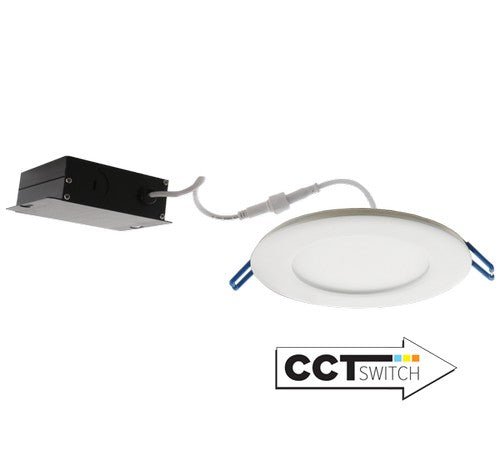

These unique 4" ultra slim panel lights designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. This IC-rated fixture can be installed indoor or outdoors.

FEATURES:

• IC Airtight for use with direct contact to insulation.

• Designed to fit in plenums as shallow as 2".

• Eliminates the need for housing.

• New Construction application requires mounting plate
  or frame.

• Remodel applications require no additional accessories.

• Wet Location allows for use indoors or outdoors.

• CA Title 24 and ENERGY STAR Compliant.

• Includes driver and Jbox.

SPECIFICATIONS:

• Wattage 9W - 12W

• Lumens 500 lm - 700 lm

• Voltage 120/277V

• Color Temp. 2700K, 3000K, 3500K,

• 4000K, 5000K

• Dimmable Triac/0-10V

• Lamp Type LED

• CRI 90+

• Wet Location Listed

Optics
Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.

Construction

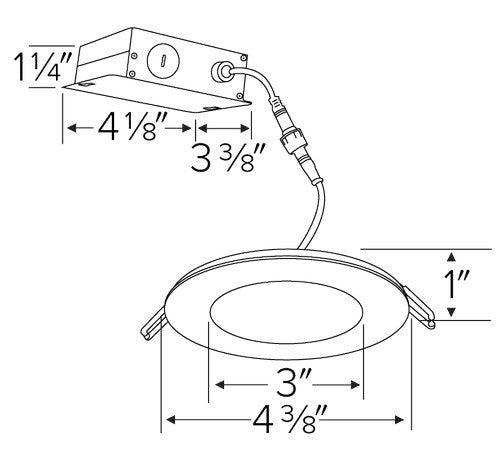

IC rated driver and fixture are tested and approved for direct contact with insulation.Aluminum die-cast trim ring with durable powdercoat finish preventing rust and paint cracking. Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside aluminum remote box with two 7/8" knockouts with slots for pryout.

Installation

Designed for super shallow ceiling plenums without any housing. High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation. Maximum hole size should not exceed 4 1/4" for this product. Suitable installation for t-grid and drop ceiling
applications.

Electrical

Driver connects directly to 120V power supply. Standard input wattage is 9W, 55 lumens per watt. Replaces 50W incandescent.

Dimmability

Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers, refer to the ELM System Dimmer Compatability List.

Listings

ETL Listed for Wet Locations. Meets ENERGY STAR® requirements. IC-Rated for direct contact with insulation. Califonia Title 24 Compliant.
Warranty: 5-year limited warranty.
