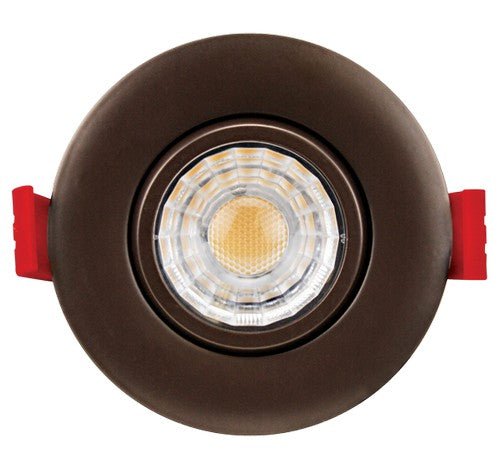

ELCO Lighting ERT31840BZ Elm System 3" Ultra Slim LED Gimbal Lights 600lm - Bronze Finish

ELCO Lighting‚¬s LED Elmž¢ System was designed as a slim panel LED light for new construction and remodel applications. It is offered in 4‚¬³ to 8‚¬³, in round or square with a white, nickel or bronze finish. The product was engineered to have a smooth lumen distribution ranging from a clean 500 to a powerful 2200 lumen all Wet Location listed. The item can be specified in either 3000K or 4000K to fit most residential and commercial applications. It is a slim simple light source for your everyday needs.

FEATURES:

• For indoor use only

• 8W

• CRI 90+

• 120V

• ETL Listed

• ENERGY STAR compliant

• Dimmable Triac/ELV


SPECIFICATIONS:

• Wattage 8W

• Lumens 600 lm - 620 lm

• Voltage 120V

• Color Temp. 3000K - 4000K

• Dimmable Triac/ELV

• Lamp Type LED

• CRI 90+

• Damp LocationListed

Optics
Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.

Construction
IC rated driver and fixture are tested and approved for direct contact with insulation.
Aluminum die-cast trim with durable powdercoat finish preventing rust and paint cracking. Plenum rated
cable connector to connect from module to remote driver box. Isolated driver integrated inside
aluminum remote box with two 7/8" knockouts with slots for pryout.

Installation
Designed for super shallow ceiling plenums without any housing. High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation.

Electrical
Included driver connects directly to 120V power supply. Standard input wattage is 9W, 55 lumens per watt. Replaces 50W incandescent.

Dimmability
Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers,refer to the ELM System Dimmer Compatability List.

Listings
ETL Listed for DAMP Locations. ENERGY STAR® Certified. IC-Rated for direct contact with insulation.
Air Tight certified in accordance with ASTM E283-2004. Califonia Title 24 Compliant (JA8-2016-E)

Warranty
5-year limited warranty.
