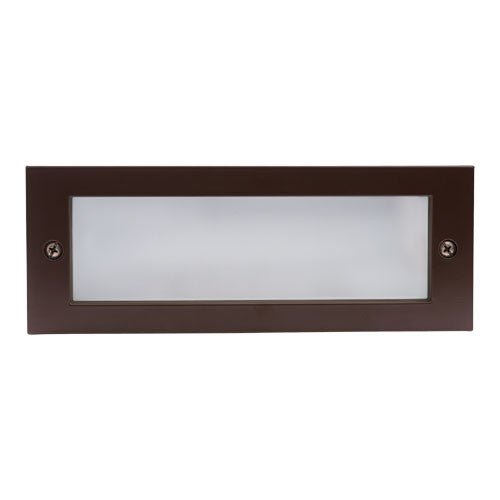

ELCO Lighting ELST83BZ LED Brick Light with Open Faceplate 5.4W, 3000K, 340lm, 120V - Bronze Finish

LED Brick Light with Open Faceplate

FEATURES :

• Diecast aluminum housing and faceplate.

• Integrated LED board and driver.

• Diffused glass lens behind faceplate.

• Wet Location listed for indoor or outdoor use.

• UL Listed for poured concrete.

• UL Listed for direct contact with insulation (type IC).

• Housing equipped with (2) side brackets and (2) ½"
  knockouts for easy wiring.

• Life span of 35,000 hours L70.


SPECIFICATION :

• Wattage 5.4W

• Lumens 340 lm

• Voltage 120V

• Color Temp. 3000K

• Lamp Type LED

• CRI 90+

• Wet Location Listed

Optics:
Open face with frosted glass lens to diffuse light and illuminate walkway .

Construction:
Diecast Faceplate with smooth powder coat finish. LED board and driver integrated in housing.
Tamper-proof screws for mounting faceplate to box. Heavy duty aluminum housing.

Installation:
Suitable for poured concrete and other wall and brick installation types. Housing equipped with
two side brackets.

Electrical:
Housing with 1/2 conduit knockout on each side suitable for thru-wiring.
Ambient operating temperature -23°F (-5°C) to 113°F (45°C).
Driver input of 120V 50/60Hz connects directly to line voltage power.

LED Technology:
90+ CRI for extremely accurate color rendering.
Lumen Maintenance of 35,000 hours L70 Life.
LED Array.

Listings:
UL and cULus Listed for Wet Location.
IC rated for direct contact with insulation.
Listed for Poured Concrete.
