Description
FEATURES :

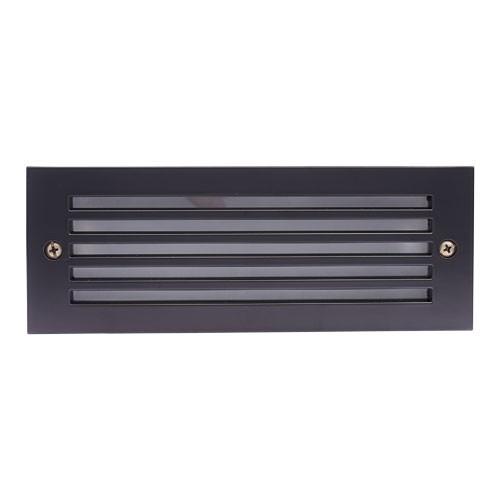

Diecast aluminum housing and faceplate.Integrated LED board and driver.
Diffused glass lens behind grill.
Wet Location listed for indoor or outdoor use.
UL Listed for poured concrete.
UL Listed for direct contact with insulation (type IC).
Housing equipped with (2) side brackets and (2) ½"
knockouts for easy wiring.
Life span of 35,000 hours L70.
SPECIFICATION :
Wattage 5.4WLumens 340 lm
Voltage 120V
Color Temp. 3000K
Lamp Type LED
CRI 90+
Wet Location Listed
Optics:
Grill face with frosted glass lens to diffuse light and illuminate walkway .
Construction:
Diecast Faceplate with smooth powder coat finish. LED board and driver integrated in housing.
Tamper-proof screws for mounting faceplate to box. Heavy duty aluminum housing.
Installation:
Suitable for poured concrete and other wall and brick installation types. Housing equipped with
two side brackets.
Electrical:
Housing with 1/2� conduit knockout on each side suitable for thru-wiring.
Ambient operating temperature -23°F (-5°C) to 113°F (45°C).
Driver input of 120V 50/60Hz connects directly to line voltage power.
LED Technology:
90+ CRI for extremely accurate color rendering.
Lumen Maintenance of 35,000 hours L70 Life.
LED Array.
Listings:
UL and cULus Listed for Wet Location.
IC rated for direct contact with insulation.
Listed for Poured Concrete.
