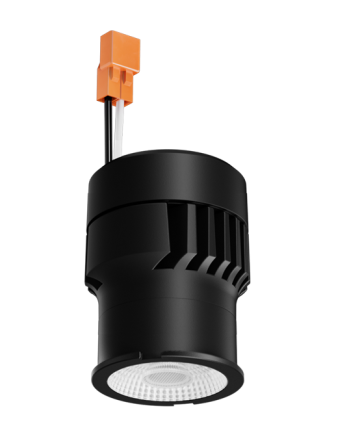

Elco Lighting ELK08CT5-W Koto LED Module with 5-CCT Switch, 825lm, Beam Angle 60° - Black Finish

Elco Lighting Kotož¢ LED Module with 5-CCT Switch, Lumens 825 lm, Color Temperature 2700K-5000K, Beam Angle 60°

SPECIFICATIONS:

• Wattage 10W

• Lumens 825 lm

• Voltage 120V

• Color Temp. 2700K, 3000K, 3500K, 4000K, 5000K

• Dimmable Triac/ELV

• Lamp Type LED

• Beam Angle 60°

• CRI 95

• Wet Location UL Listed w/Wet Location Trims

• Damp Location UL Listed


FEATURES:

5-CCT Switch allows to choose between 2700K, 3000K, 3500K, 4000K or 5000K
Integrated 120V dimmable driver Triac/ELV
Excellent color rendering 90+ CRI
Works in 2‚¬³, 3‚¬³, 4‚¬³ & 6‚¬³ ELCO Housings with Kotož¢ twist-&-lock trims
Energy Star Certified. Title 24 JA8-2019 Compliant
Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C).
Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Color Shifter (L50)
Covered by U.S. PATENTS and Patents Pending
