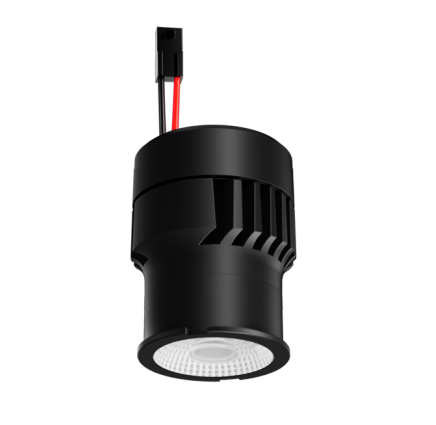

Elco Lighting ELK0827-24 Koto LED Module, 2700K, 800lm, 24V DC, Beam Angle 25° 38° 60° - Black Finish

Elco Lighting Kotož¢ LED Module, Color Temperature 2700K, Lumens 800 lm, Voltage 24V DC, Beam Angle 25°, 38°, 60°

SPECIFICATIONS:

• Wattage 10W

• Lumens 800 lm

• Voltage 24V DC

• Color Temp. 2700K

• Lamp Type LED

• Beam Angle 25°, 38°, 60°

• CRI 90


FEATURES:

10W, 800 lm, 24V DC input
Integrated 24V DC Dimmable Driver for low voltage and PoE applications
Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C)
Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Snoot (L50),
Color Shifter (L51)
Works in 2‚¬³, 3‚¬³, 4‚¬³, 5" & 6" ELCO Koto DC housings with Kotož¢ twist-&-lock trims
Excellent color rendering 90+ CRI
Title 24 JA8-2022 Compliant
Meets Energy Star Requirements
Covered by U.S. PATENTS and Patents Pending

Technical Details:

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Construction: Integrated 24V DC driver. Diecast aluminum body with heat fins allows for efficient cooling.

Installation: Twist-lock design for toolless trim installation.

Electrical: Module connects to 24V DC power supply. High-efficiency driver with a power factor >0.9. Start time of less than 0.75 seconds. PoE ready.

LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixelation.

Dimmability: Dimming based on power supply.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
