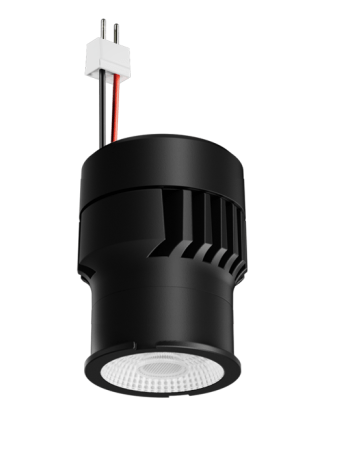

Elco Lighting 12V AC Retrofit Kotož LED Module, Color Temperature 2700K, Lumens 800 lm, 12V AC

FEATURES :

9W, 800 lm, 3000K
Integrated 12V AC Dimmable Driver
Works with Electronic and Magnetic 12V AC transformers
Works in 3€š¬³ and 4€š¬³ ELCO Low Voltage Housings with GU5.3 Base.
Excellent color rendering 93+ CRI
Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens: 18° (EP731C).
Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Color Shifter
(L50)
Title 24 JA8-2019 Compliant
Meets Energy Star Requirements
Covered by U.S. PATENTS and Patents Pending

SPECIFICATIONS :

• Wattage 9W

• Lumens 800 lm

• Voltage 12V AC

• Color Temp. 2700K - SunsetK

• Lamp Type LED

• Beam Angle 25°, 38°, 60°

• CRI 90

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED
technology.

Construction: Integrated 12V AC driver and light engine. Diecast aluminum body with heat fins allow for
efficient cooling.

Installation: Twist-lock design for toolless trim installation. Works in 3€š¬³ and 4€š¬³ ELCO Low Voltage Housings
with GU5.3 Base using 3" and 4" Kotož Trims.

Electrical: Module connects to 12V AC power supply. High efficiency driver with a power factor >0.9. Start
time of less than 0.75 seconds.

LED Technology: Extremely accurate Color Rendering Index of 90+. Lumen Maintaince of 50,000 hours L70
Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat
sink. Instant On to Full Brightness technology. No LED pixilation.

Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to
become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when
dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT)
attribute.

Dimmability: Dims down to 10%. For full list of dimmers, refer to the Dimmer Compatibility List. Industry
leading dimming.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
