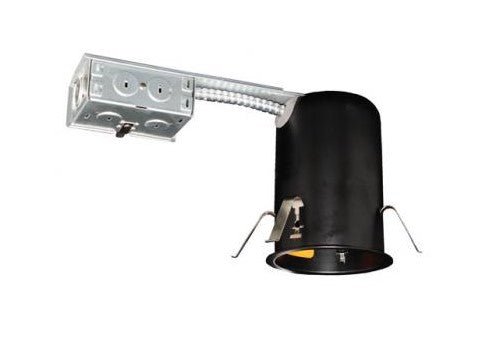

ELCO Lighting EL99RICA 4" IC Remodel Housing With Adjustable Lampholder - Black Finish

ELCO Lighting 4 Inch IC Remodel Housing with Adjustable Lampholder

Features:

• Single Wall Remodel Airtight IC construction, for use in
  insulated ceilings.

• Adjustable socket bracket allows the use of different
  lamp types and sizes as well as proper and consistent
  positioning.

• Four remodel clips secure housing and accommodate
  various ceiling thickness.

• Adjustable socket bracket allows for different lamp
  types/sizes and proper and consistent lamp positioning.

• Pre-wired junction box provided with 1/2" and 3/4"
  knockouts and with removable access plates.

• Trims sold separately.

• Lamp: 50W MAX, 120V, PAR20/R20 (not
  included), Lamp Holder: (E26) Medium base socket.

• CA Title 24 compliant (as low efficiency luminaire).

• UL listed for damp location and for feed through.

Specifications:

• Wattage 50W

• Voltage 120V

• Lamp Type Medium Base (E26)

• Damp Location Listed

Technical Details:

Construction:
‚¬¢ IC rated for direct contact with insulation, for use in IC or non-IC conditions.
‚¬¢ Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
‚¬¢ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
‚¬¢ Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x8 joists or taller are used. High strength hanger bars can
easily be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See
installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size pryout conduit
knockouts, 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber,
engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-grids. Spans up to 24"
and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange
allows for single-person installation while aligning the housing with the joists.
Electrical:
‚¬¢ Input Voltage: 120V AC.
‚¬¢ Thermally protected against improper lamping.
Trims: Compatible with ELCO 4" Line Voltage PAR trims.
Lamp: Designed for use with Medium Base (E26) PAR lamps up to 50W.
Listings:
‚¬¢ UL Listed for Damp Location.
‚¬¢ UL Listed for Feed Through.
‚¬¢ UL Listed for Direct Contact with Insulation and Combustible Material.
‚¬¢ Airtight per ASTM E-283.
‚¬¢ Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
