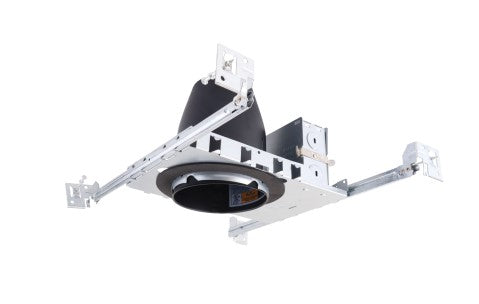

ELCO Lighting 4 Inches, 12 Watts, E26 Base ICA New Construction Housing - For LED Lamps only Voltage 12V

Features:

• 4" Line Voltage IC Airtight Housing.

• Lamp: 12W MAX.

• UL Listed for damp location and for feed through.

• UL Listed for direct contact with insulation

• Specifications

• Wattage 12W

• Voltage 120V

• Lamp Type LED

• Damp Location Listed


Specifications:

• Wattage 12W

• Voltage 120V

• Lamp Type LED

• Damp Location Listed

Technical Details:

Construction:
€š¬ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
€š¬ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
€š¬ Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can
easily be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See
installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size pryout conduit
knockouts, 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber,
engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-grids. Spans up to 24"
and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange
allows for single-person installation while aligning the housing with the joists.

Electrical:
€š¬ Input Voltage: 120V AC.
€š¬ Thermally protected against improper lamping.
Trims: Compatible with ELCO 4" Line Voltage PAR/R trims.
Lamp: Designed for use with Medium Base (E26) PAR/R lamps up to 12W.

Listings:
€š¬ UL Listed for Damp Location.
€š¬ UL Listed for Direct Contact with Insulation (Type IC)
€š¬ UL Listed for Feed Through.
€š¬ Airtight per ASTM E-283.
€š¬ Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
