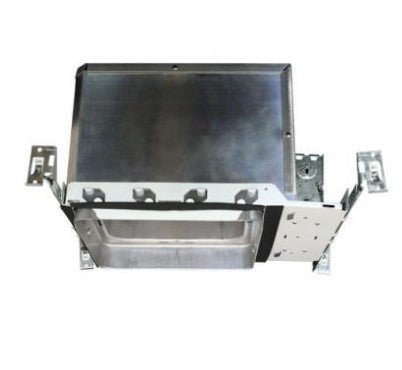

ELCO Lighting EL8SQICA 8 Inches Incandescent IC Square Housing 75W, 120V

ELCO Lighting EL8SQICA 8 Inches Incandescent IC Square Housing Watt 75W, Voltage 120V

Features:

• Square housing, Type IC, Airtight (with lensed trims).

• Double wall aluminum construction.

• Integral thermal protector.

• Supplied with captive bar hangers for 24" max joist
  spacing.

• Lamp: 120V 75W MAX A19.

• UL listed for Damp Location and for Feed Through.


Specifications

• Wattage 75W

• Voltage 120V

• Lamp Type Medium Base (E26)

• Damp Location Listed


Technical Details:

Construction:
‚¬¢ IC rated for direct contact with insulation, for use in IC or non-IC conditions.
‚¬¢ Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
‚¬¢ Airtight housing with lensed trims to restrict airflow in accordance with ASTM E-283 air-tight
requirements.
‚¬¢ Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x8 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 8 1/2". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size pryout conduit knockouts, 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-grids. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with the joists.

Electrical:
‚¬¢ Input Voltage: 120V AC.
‚¬¢ Thermally protected against improper lamping.

Trims: Compatible with EL10W, EL11W, EL15W, EL88130W.

Lamp: Designed for use with Medium Base (E26) PAR lamps up to 75W.

Listings:
‚¬¢ UL Listed for Damp Location.
‚¬¢ UL Listed for Feed Through.
‚¬¢ UL Listed for Direct Contact with Insulation and Combustible Material.
‚¬¢ Airtight per ASTM E-283.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
