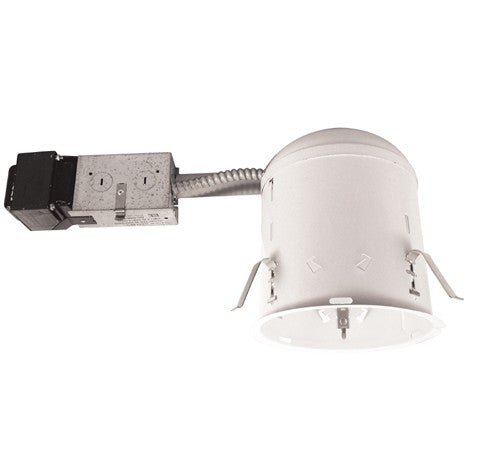

ELCO Lighting EL7RLV 75W 6" Low Voltage Remodel Housing - White Finish

6" Low Voltage Airtight IC Housing. Perfect for Retrofitting Low Voltage Housings to LED Lights

FEATURES :

• Remodel Housing.

• Versatile, reliable and easy to install.

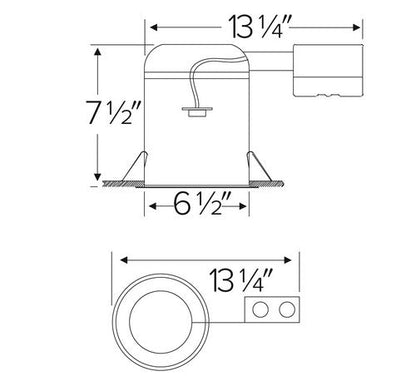

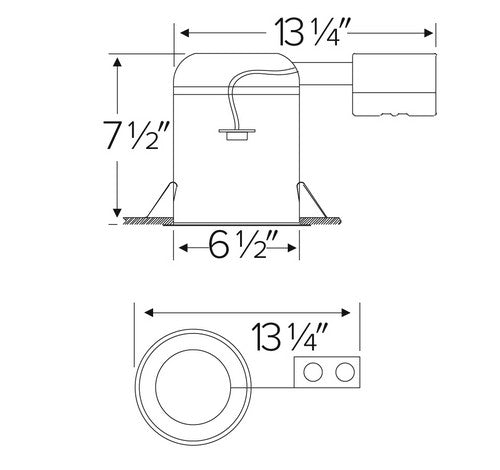

• Unit slips through 6 1/2" ceiling cut out.

• Integral flange secures fixture against ceiling.

• Four remodel clips secure housing and accommodate various ceiling thickness.

• Junction box listed for 90° supply wire.

• Lamp: 12V, MR16 GU/GX5.3 bi-pin LED (not included).

• Lamp Holder: MR16 GU/GX5.3 bi-pin socket.

• Trims sold separately.


SPECIFICATIONS :

• Wattage : 75W

• Voltage : 120V or 277V

• Lamp Type : GU5.3 BiPin

• Damp Location : Listed

Construction:
Remodel housing with thermal protector.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Steel housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x8 joists or taller joists are used. Maximum hole cutout is 6 1/2". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical:
Input Voltage: 120V AC.
Output Voltage: 12V AC.
Thermally protected against improper lamping.

Trims: Compatible with ELCO 6" MR16 trims.

Dimmability:
Magnetic transformer dims with MLV type dimmers.
See dimming compatibility list for a full list of compatible dimmers.

Note: Lamp used may affect dimmable.

Lamp: Designed for use with GU5.3 MR16 LED lamps.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
