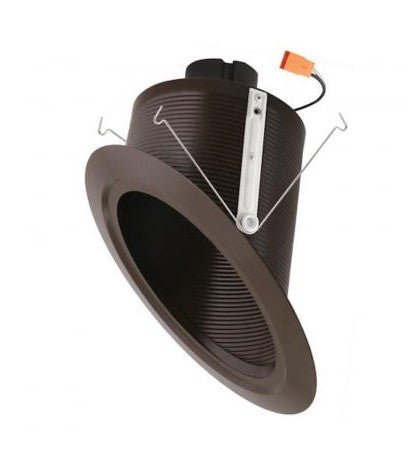

ELCO Lighting EL764CT5BZ 6 Inches Super Sloped Ceiling LED Baffle Inserts 18W, 1200lm - Bronze Finish

Sloped Ceiling LED inserts feature an integral gimbal for ±25° adjustability. Compatible with most incandescent and electronic low voltage dimmers.

Features:

• Sloped Ceiling LED Inserts feature an integral gimbal for
  ±25° adjustability.

• Compatible with most incandescent and electronic low
  voltage dimmers.

• ENERGY STAR® Certified. California Title 24 (JA8-2016-
  E).

• Life Span: 50,000 hours L70.


Specifications:

• Wattage 18W

• Lumens 1200 lm

• Voltage 120V

• Color Temp. 2700K, 3000K, 3500K,

• 4000K, 5000K

• Dimmable Triac/ELV

• Lamp Type LED

• CRI 90+

• Damp Location Listed


Technical Details

Optics: LED light engine has frosted polycarbonate lens with reflector to diffuse light evenly while reducing glare.

Construction: Deep baffle trim with torsion springs to be held into the housing. High quality powder coat finish preventing rust and paint cracking on metal parts. Integral gimbal allows for 25° adjustability to match slope.

Installation: Designed to install into ELCO 6‚¬� Super Sloped ceiling housing with torsion springs brackets. For retrofitting other manufacturers sloped ceiling cans always test the product to ensure proper fit and function.

Electrical:
Driver connects to 120VAC power supply.
High efficiency, high power factor > 0.9 driver.

LED Technology:
Accurate color rendering with 90+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum diecast heat sink.

Housings: Compatible with EL971ICA, EL971RICA.

Dimmability:
Dimmable with most standard TRIAC and ELV type dimmers.
Dimming range of 100% down to 10%. Dimming range may vary depending on dimmer model.
For full list of dimmers refer to the Dimmer Compatibility List.

Listings:
UL Listed for Damp Location.
ENERGY STAR® Certified.
