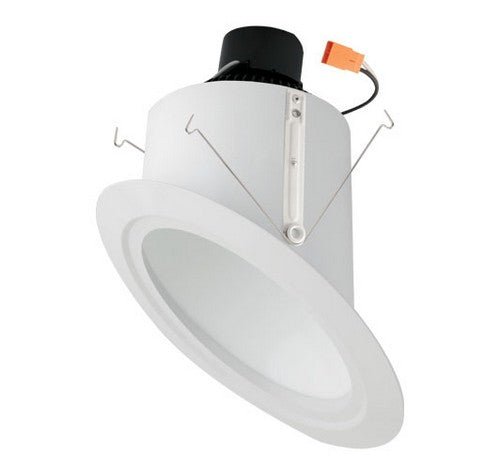

Sloped Ceiling LED inserts feature an integral gimbal for ±25° adjustability. Compatible with most incandescent and electronic low voltage dimmers.

FEATURES :

• Sloped Ceiling LED Inserts feature an integral gimbal for ±25° adjustability.

• Compatible with most incandescent and electronic low voltage dimmers.

• ENERGY STAR® Certified. California Title 24 (JA8-2016).

• Life Span: 50,000 hours L70.


SPECIFICATIONS :

• Wattage : 15W - 18W

• Lumens : 1050 lm - 1200 lm

• Voltage : 120V

• Color Temp. : 2700K - 3000K

• Dimmable : Triac/ELV

• Lamp Type : LED

• CRI : 90+

• Damp Location : Listed

Optics: LED light engine has frosted polycarbonate lens with reflector to diffuse light evenly throughout while
reducing glare.

Construction: Deep reflector trim with torsion springs to be held into the housing. High quality powder coat finish preventing rust and paint cracking on metal parts. Integral gimbal allows for 25° adjustability to match slope.

Installation: Designed to install into ELCO 6€š¬� Super Sloped ceiling housing with torsion springs brackets. For retrofitting other manufacturers sloped ceiling cans always test the product to ensure proper fit and function.

Electrical:
Driver connects to 120VAC power supply.
High efficiency, high power factor > 0.9 driver.

LED Technology:
Accurate color rendering with 90+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum die cast heat sink.

Housings: Compatible with EL971ICA, EL971RICA.

Dimmability:
Dimmable with most standard TRIAC and ELV type dimmers.
Dimming range of 100% down to 10%. Dimming range may vary depending on dimmer model.
For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last. 5-year Limited warranty. Item Lamp

Labels and Listings:
UL Listed for Damp Location.
ENERGY STAR® Certified.
California Title 24 (JA8-2016).
