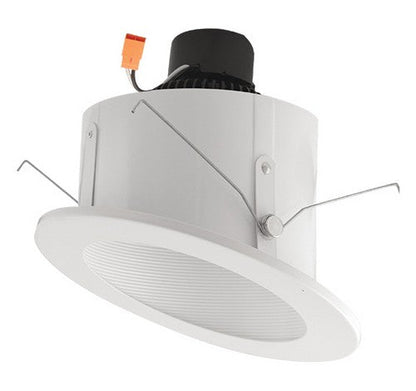

ELCO Lighting EL71330W 15W 6" Sloped Ceiling LED Baffle Insert 3000K, 1050lm - White Finish

Sloped Ceiling LED inserts feature an integral gimbal for ±25° adjustability. Compatible with most incandescent and electronic low voltage dimmers.

FEATURES :

• Sloped Ceiling LED Inserts feature an integral gimbal for ±25° adjustability.

• Compatible with most incandescent and electronic low voltage dimmers.

• ENERGY STAR® Certified. California Title 24 (JA8-2016-E).

• Life Span: 50,000 hours L70.


SPECIFICATIONS :

• Wattage : 15W - 18W

• Lumens : 1050 lm - 1200 lm

• Voltage : 120V

• Color Temp. : 2700K - 3000K

• Dimmable : Triac/ELV

• Lamp Type : LED

• CRI : 90+

• Damp Location : Listed

Optics: LED light engine has frosted polycarbonate lens with reflector to diffuse light evenly throughout while reducing glare.

Construction: Deep phenolic baffle trim with torsion springs to be held into the housing. High quality powder coat finish preventing rust and paint cracking on metal parts. Integral gimbal allows for 25° adjustability to match slope.

Installation: Designed to install into ELCO 6 Sloped ceiling housing with torsion springs brackets. For retrofitting other manufacturers sloped ceiling cans always test the product to ensure proper fit and function.

Electrical:
Driver connects to 120VAC power supply.
High efficiency, high power factor > 0.9 driver.

LED Technology:
Accurate color rendering with 90+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum die cast heat sink.
Housings: Compatible with EL970ICA, EL970RICA.

Dimmability:
Dimmable with most standard TRIAC and ELV type dimmers.
Dimming range of 100% down to 10%. Dimming range may vary depending on dimmer model.
For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last. 5-year Limited warranty.

Labels and Listings:
UL Listed for Damp Location.
ENERGY STAR® Certified.
California Title 24 (JA8-2016-E).

Download PDF File

Specification
