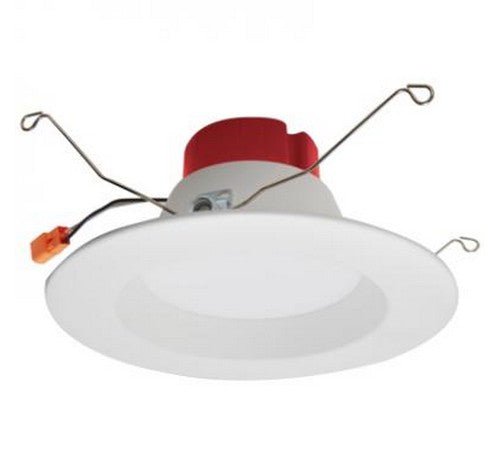

ELCO Lighting EL65527W 10W 5" or 6" Builder Round LED Reflector Insert 2700K 850lm - White Finish

ELCO Lighting's inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.

FEATURES :

• Contractor-friendly bulk packaging.

• Fits ELCO 5" or 6‚¬²‚¬² Dedicated LED Recessed Housings, Regular and Shallow.

• Soft white lens provides smooth lumen distribution and eliminates LED pixelation

• Deep set LED trim reduces glare while providing area illumination.

• CA Title 24, ENERGY STAR, JA8-2016-E.

• Life Span of 50,000 hours L70.

• Medium Base Adapter (PSA30) sold separately.


SPECIFICATIONS :

• Wattage : 10W

• Lumens : 850 lm

• Voltage : 120V

• Color Temp. : 2700K - 3000K

• Dimmable : Triac/ELV

• Lamp Type : LED

• CRI : 93+

• Wet Location : Listed

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.

Construction: For use in IC and non-IC housings. Spun Aluminum for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Electrical: Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9. Start time of less than .75 seconds.

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing integral heat sink.
Instant On to Full Brightness.
No LED pixelation.

Dimmability: Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List. Industry leading dimming. Dims smoothly with no hot spots or flickering.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.

Labels and Listings:
UL Listed for Wet Location.
RoHS Compliant.
ENERGY STAR® Certified.
California Title 24 JA8-2016-E..

Download PDF File

Specification
