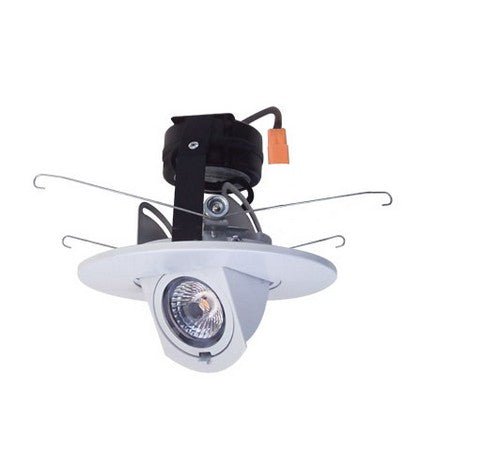

ELCO Lighting EL59730W 12.6W 5" Round LED Adjustable Pull-Down Insert 3000K - White Finish

ELCO Lighting inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.

FEATURES :

• Functions as downlight, wall wash or accent light.

• Great for lighting up artwork and spotlighting.

• Fits ELCO 5" Dedicated LED Recessed Housings.

• Includes Medium Base Adapter for retrofitting existing E26 Base housings.

• Die-Cast construction provides lasting durability.

• Interchangeable lenses available for multiple beam angles 38° installed, 20° and 60°
• Field Changeable optics sold separately.

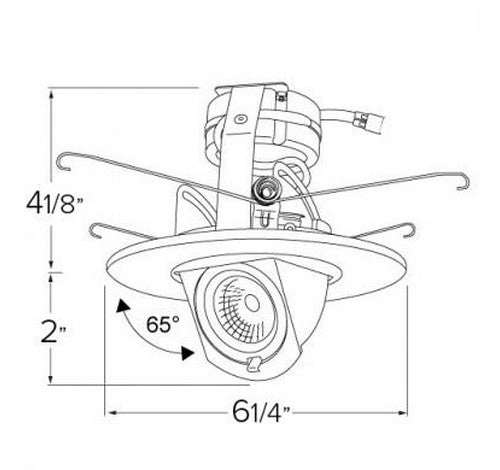

• Provides maximum adjustability of 65° tilt, 356° rotation.

• CA Title 24, ENERGY STAR, JA8-2016-E.

• Life Span of 50,000 hours L70.


SPECIFICATIONS :

• Wattage : 12.6W

• Lumens : 800 lm - 840 lm

• Voltage : 120V

• Color Temp. : 2700K - 3000K

• Dimmable : Triac/ELV

• Lamp Type : LED

• Beam Angle : 36°

• CRI : 93+

• Damp Location : Listed

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.

Construction: For use in IC and non-IC housings. Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Electrical: Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9. Ambient operating temperature -40°F (-40°C) to 104°F (40°C). Input wattage of 14W. Start time of less than .75 seconds.

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing integral heat sink.
Instant On to Full Brightness.
No LED pixelation.

Dimmability: Works with 120V Triac and ELV type dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.

Labels and Listings:
UL Listed for Wet Location.
RoHS Compliant.
ENERGY STAR® Certified.
California Title 24 JA8-2016-E
