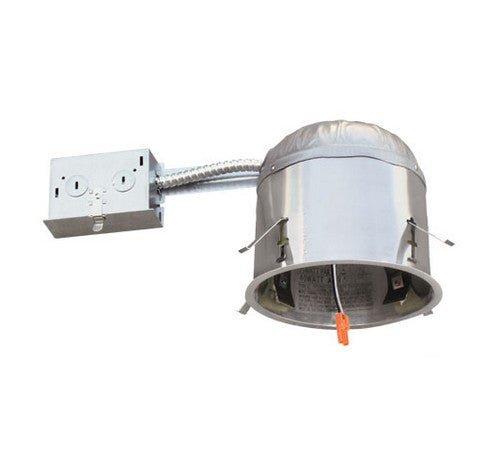

ELCO Lighting EL560RICA 17W Max 5 Inch IC Airtight Shallow Remodel Housing for LED Inserts

ELCO Lighting 5 Inch Dedicated LED IC Airtight Remodel Housing

FEATURES :

Shallow single wall IC remodel construction, for use in insulated ceilings.
CA Title 24 compliant (as high efficiency luminaire).
Trims sold separately.
Lamp: 17W Max 120V.
UL Listed for damp location and for feed through.
Compatible with ELCO 5" LED Inserts.

SPECIFICATIONS :

• Wattage : 17W

• Voltage : 120V

• Damp Location : Listed

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air- tight requirements.
Steel housing for greater heat dissipation.

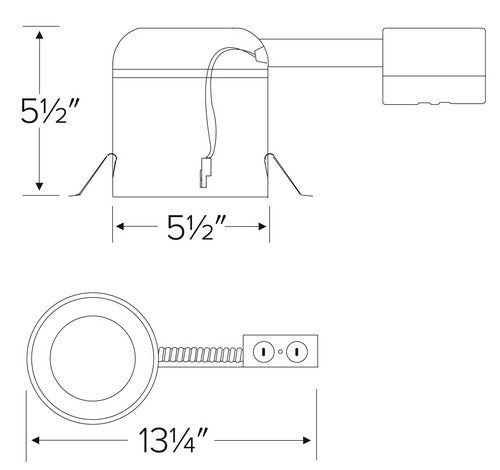

Installation: Designed for ceiling plenums where 2x8 joists or taller joists are used. Maximum hole cutout is 5 1/2". See installation sheet for detailed information.

Electrical:
Input Voltage: 120V AC.
Inherently protected.

Dimmability:
Dimmability based on lamp.

Lamp: Designed for use with ELCO 5" LED inserts, LED modules, or PSA37 with 5" MR16 trims.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp for Title 24 Compliance.
