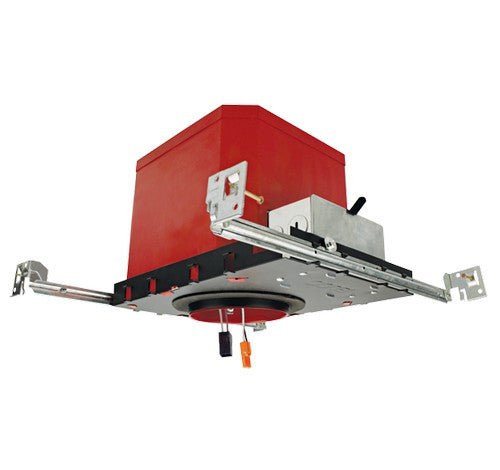

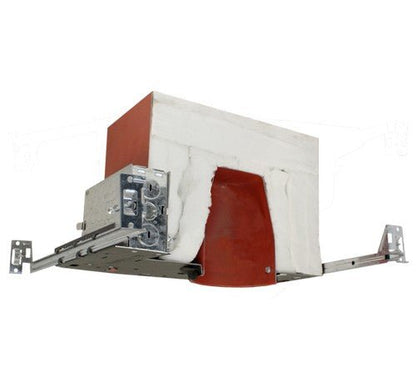

ELCO Lighting EL49FICDXA 14W 4" 0-10V New Construction 2-Hour Fire Rated Housing

4‚¬³ Fire rated new construction LED housing. Compatible with 4‚¬³ 0-10V LED Inserts. 2-hour fire rated.

FEATURES :

• Wired for 0-10V Dimming

• Single wall IC Airtight rated for Direct Contact with Insulation
  120/277V Input

• Meets restricted air flow requirements (per ASTM E-283)

• UL Listed for direct contact with Insulation

• UL Listed for Damp Locations

• UL Listed for Wet Location with Wet Location Rated Inserts

• UL Listed for Feed Through

• CA Title 24 Compliant


SPECIFICATIONS :

• Wattage : 14W

• Voltage : 120/277V

• Wet Location : Listed

• Damp Location : Listed

Construction:
Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation:
Designed for ceiling plenums where 2x8 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4‚¬� knockouts, Seven 1/2‚¬� trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Labels and Listings:
UL Listed for Damp Location and for Wet Location with select trims.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
