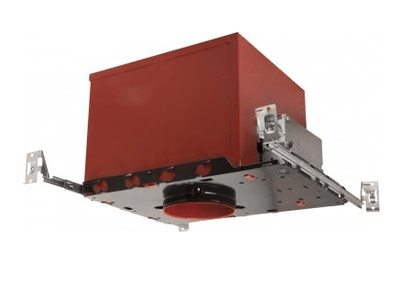

Elco Lighting EL49FICA-GU10 4" Fire Rated New Construction Housing, Lamp Type GU10, 35W, 120V - Red Finish

Elco Lighting 4" Fire Rated New Construction Housing, Lamp Type GU10, Wattage 35W, Voltage 120V

Features:

For use in insulated ceilings.
Integrated non-combustible insulation enhances acoustical protection, dampening sound transfer
between floors.
GU10 socket for LED and traditional GU10 lamps.
Sound rated.

Specifications:

Wattage 35W
Voltage 120V
Lamp Type GU10
Damp Location Listed

Technical Details:

Construction:
Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.

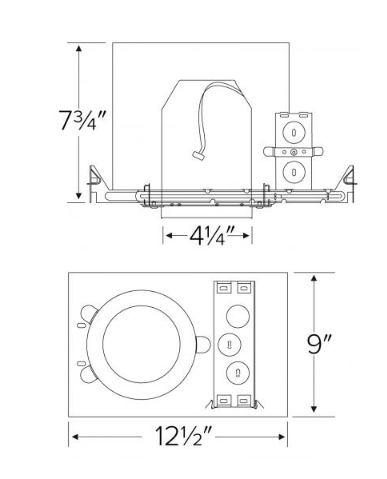

Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements

Installation:
Designed for ceiling plenums where 2x8 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4� knockouts, Seven 1/2� trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Trims: Compatible with ELCO 4" GU10 trims.

Listings: cUL Listed for Damp Location and for Wet Location with select trims. cUL Listed for Direct Contact with Insulation and Combustible Material. cUL Listed for Feed Through. cUL Classified 2-hour fire rating. Sound rated.
