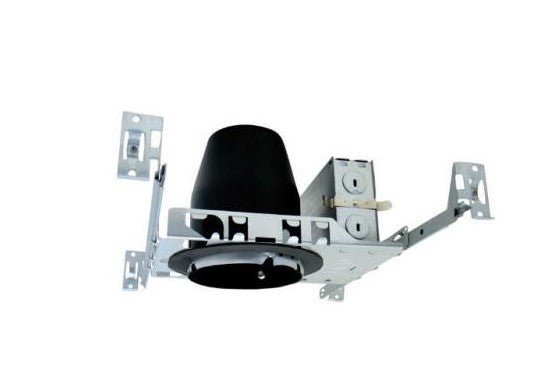

ELCO Lighting EL49A 4"es New Construction Housing for 50W GU10 Base 50W, 120V - Black Finish

ELCO Lighting EL49A 4 Inches New Construction Housing for 50W GU10 Base Watt 50W, Voltage 120V

Features:

• Single Wall New Construction Airtight Housing with
  Thermal Protector.

• Flicker Free LED Dimming.

• Lamp: 120V, MR16 GU10 LED (not included).

• Lamp Holder: Twist-and-lock GU10 MR16 lampholder.

• Trims sold separately


Specifications:

• Wattage 50W

• Voltage 120V

• Lamp Type GU10

• Damp LocationListed


Technical Details

Construction:
‚¬¢ Single Wall New Construction Airtight Housing with thermal protector.
‚¬¢ Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
‚¬¢ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
‚¬¢ Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easilty be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical:
‚¬¢ Input Voltage: 120V AC.
‚¬¢ Thermally protected against improper lamping.

Trims: Compatible with ELCO 4" MR16 trims.

Dimmability:
‚¬¢ Dimmability based on lamp.

Lamp: Designed for use with GU10 MR16 LED lamps.

Listings:
‚¬¢ UL Listed for Damp Location.
‚¬¢ UL Listed for Wet Location with select trims.
‚¬¢ UL Listed for Feed Through.
‚¬¢ Airtight per ASTM E-283.
‚¬¢ Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
