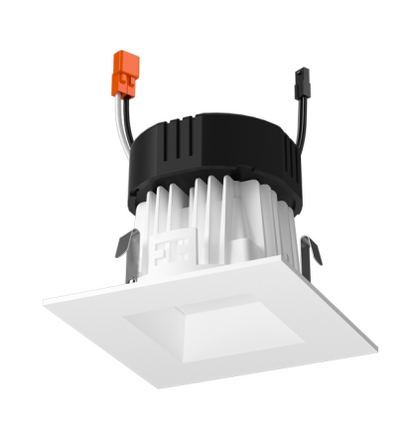

Elco Lighting EL487CT5W 4" 0-10V Square LED Reflector Inserts with 5-CCT and 3-Lumen Switch, 10/14/18W, 2700K-5000K, 1000/1400/1800lm, 120V-277V - White Finish

This unique Ply System 0-10V dimmable Square LED Insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED technology and with a 120/277V, Triac/ELV/0-10V dimmable drivers. Switch to desired Color Temperature (2700K, 3000K, 3500K, 4000K or 5000K) and Lumen Output (1000 lm, 1400 lm, 1800 lm) by using manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.

Specifications:

Manufacturer: Elco Lighting
SKU: EL487CT5W
Wattage:10, 14, 18 Watt
Lumens: 1000, 1400, 1800 lm
Voltage: 120/277V
Color Temp.: 2700K - 5000K
Dimmable: Triac/ELV/0-10V
Lamp Type: LED
CRI: 90+
Wet Location: Listed

Features:

Manual switch to choose desired Color Temperature and Lumen Output
0-10V/Triac/ELV, 120/277V dimmable driver
Lumens (Wattage): 1000 lm (10W), 1400 lm (14W), 1800 lm (18W)
Soft white lens provides smooth lumen distribution and eliminates LED pixelation
Deep set LED trim reduces glare while providing even illumination
90+ CRI for extremely accurate color rendering
CA Title 24 JA8-2022-E Compliant
Life span of 50,000 hours L70

Download PDF File

Specification
