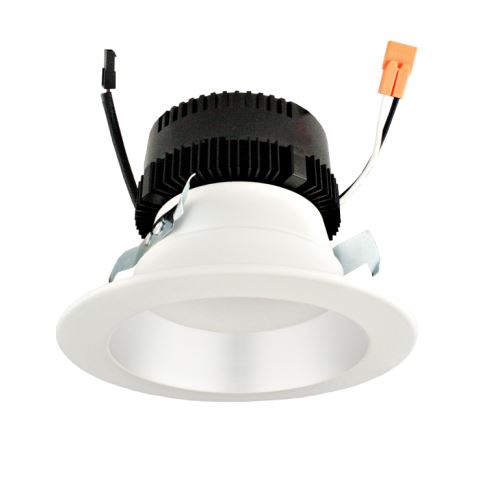

ELCO Lighting EL475CT5DHW 4 Inch 0-10V LED Inserts with 5-CCT and 3-Lumen Switch Haze/White Ring Finish

This unique Ply System 0-10V dimmable LED Insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Switch to desired Color Temperature (2700K, 3000K, 3500K, 4000K or 5000K) and Lumen Output (850 lm, 1000 lm, 1500 lm) by using manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Plyž¢ System Housings or as a retrofit with existing housings.

FEATURES :

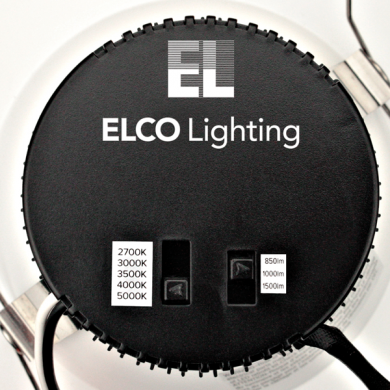

• Manual switch to choose desired Color Temperature and Lumen Output

• 0-10V Dimmable

• 120/277V Driver

• Soft white lens provides smooth lumen distribution and eliminates LED pixelation

• Deep set LED trim reduces glare while providing even illumination

• 90+ CRI for extremely accurate color rendering

• CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E

• Life span of 50,000 hours L70

• Patent Pending

SPECIFICATIONS :

• Wattage 9.5, 13.5, 18W

• Lumens 850, 1000, 1500 lm

• Voltage 120/277V

• Color Temp. 2700K, 3000K, 3500K, 4000K, 5000K

• Dimmable 0-10V

• Lamp Type LED

• CRI 90+

• Wet Location Listed

Optics: Frosted polycarbonate lens diffuses light evenly while reducing glare with LED technology.

Construction: For use in IC and non-IC applications. High quality powder coat prevents rust and cracking.

Installation: For use with ELCO 4" Plyž¢ Housings EL49FICDXA, EL49FICDXA-B, EL490ICDXA, EL490ICDXA-B, EL490ICDXA-EM5, EL490RICDXA.

Electrical: 120/277V Input. Power factor > 0.9 Start time of less than .75 seconds.

LED Technology: Extremely accurate color rendering with 93+ CRI. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing heat sink. Instant On
to Full Brightness. No LED pixelation.

Dimmability: Works with 0-10V dimmers. Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List. Dims with no hot spots or flickering.

Listings: UL Listed for Wet Location. RoHS Compliant. ENERGY STAR® Certified. California Title 24 JA8-2016-E.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
