Description

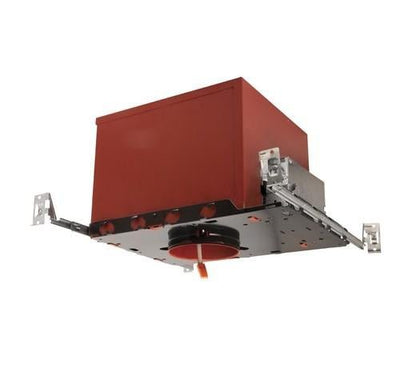

14W 3 fire rated new construction LED housing. Compatible with MR16 LED lamps with quick connect base or 3 LED inserts. 2-hour fire rated.
Product Features
- IC Airtight for direct contact with insulation.
- UL Listed for 2-Hour Fire Resistance to meet and exceed strict fire safety codes.
- Integrated Non-combustible insulation acts as a sound barrier minimizing sound transfer between floors.
- Meets Title 24 requirements. ENERGY STAR® Certified.
- Trims and inserts sold separately.
Specifications
- Wattage: 14W
- Voltage: 120V
- Damp Location: Listed
Construction:
Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.

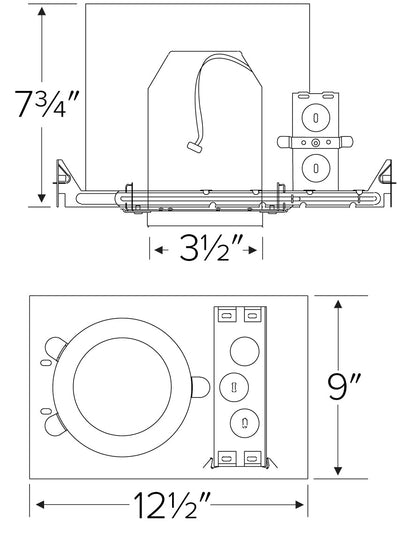

Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Installation:
Designed for ceiling plenums where 2x8 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Two 3/4� knockouts, Seven 1/2� trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.
Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.
Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.9.
Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through.
