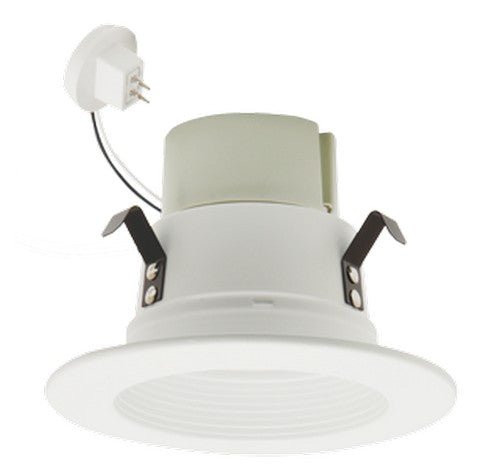

ELCO Lighting EL14027W 10W 4" LED Bi-Pin Retrofit Insert Baffle Trims - White Finish

4-Pin Connector to adapt to existing 4-Pin Socket (Electronic ballast CFL) included.
2-Pin Connector to adapt to 2-Pin Socket (Magnetic ballast CFL) sold separately.

FEATURES :

• Perfect for retrofitting Low Voltage Housings to LED.

• GU5.3 socket for MR16 retrofit.

• Soft white lens provides smooth lumen distribution.

• Flicker free dimming.


SPECIFICATIONS :

• Wattage : 10W

• Lumens : 550 lm - 600 lm

• Voltage : 12V

• Color Temp. : 2700K - 4000K

• Dimmable : Triac/ELV

• Lamp Type : LED

• CRI : 90+

• Damp Location : Listed

Construction:
Meticulously manufactured trim with a powder coated or anodized finish. Diecast trim ring for durability and lasting quality.

Installation: Clips securely mount trim into the housing and keeps ring flush with ceiling.

Compatible Housing: Compatible with 4 Low Voltage IC and Non-IC versions with GU5.3 Base.

Dimmability: Dimmability depends on transformer compatibility (magnetic or electronic).

Warranty: ELCO Products are built to last. 5-year Limited Warranty.

Labels and Listings:
UL Listed for Wet Location
RoHS Compliant
ENERGY STAR® Certified
California Title 24 JA8-2016

Download PDF File

Specification
