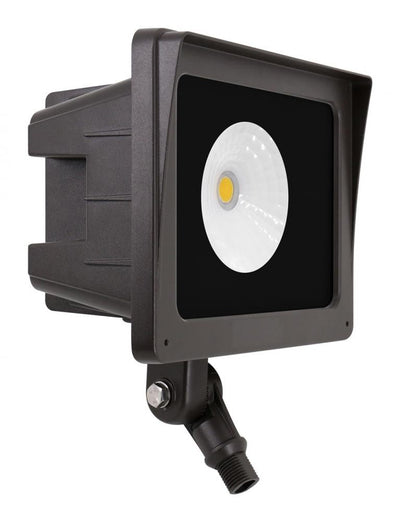

ELCO Lighting EFL45M50FL Medium LED Floodlight 45W 5000K 5400lm 120/277V Medium Flood Dark - Bronze Finish

FEATURES :

• Die-cast Aluminum Housing.

• Durable dark bronze coat finish.

• Knuckle mount for adjusting angle.

• Standard input wattage: 35W (100W HID equivalent) or
  45W (150W HID equivalent).

• Optional Accessories:

• Knuckle (EFLMKW) enabling mounting on junction boxes
  and pipes.

• Wireguard (EFLMWG) for added protection.

• Photocells, button type (EWPPHBU, EWPPHB1) and
  swivel type (EWPPHSU).

• Motion Detectors (EWMSU).


SPECIFICATION :

• Wattage 35W - 45W

• Lumens 3500 lm - 5400 lm

• Voltage 120/277V

• Color Temp. 4000K - 5000K

• Lamp Type LED

• Beam Angle Medium Flood - Wide

• Flood

• CRI 70+

• Power Factor > 0.9

• Wet Location Listed

Lamp:
COB LED, CRI 70+

Optics:
Glass lens

Construction:
Die-cast aluminum housing. Dark bronze powder coated finish. Impact, corrosion, and UV
resistant.

Electrical:
Constant current 120/277V AC Class 2 Driver with a power factor > 0.9. Ambient operating

temperature:
-40°F (-40ºC) to 113°F (45°C). Standard input wattage: 35W (100W HID equivalent) or 45W
(150W HID equivalent)

Listings:
UL listed for wet locations. DLC qualified. LM-80 certified. IP65 rated.

Warranty:
ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.
