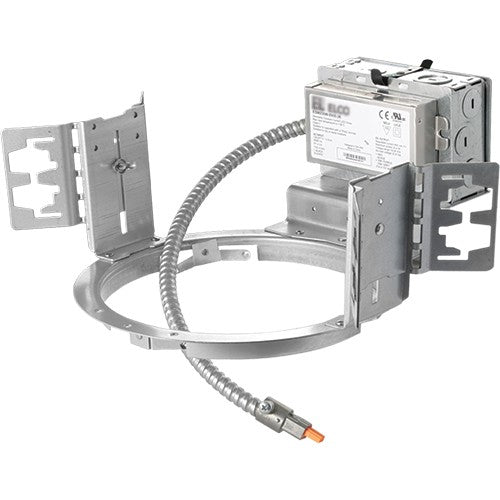

ELCO Lighting E9LHU40D2 9" New Construction Architectural Frame with Driver, 4000lm, 120/277V

ELCO Lighting 9" New Construction Architectural Frame with Driver, Lumens 4000 lm, Voltage 120/277V, Dimming Triac/ELV/0-10V, Gen 2

FEATURES :

Optional 90 minutes, 120/277 VAC, 60Hz Emergency
Backup.
USA designed and assembled.
LED Light Engine and Hanger bars sold separately (see
Compatible Products).

SPECIFICATIONS :

Lumens 850 lm - 6000 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV/0-10V, Sunset,
Lutron
Power Factor ‰¥0.9
Damp Location Listed

Technical Details:

Construction:
Constructed from 16 gauge galvanized steel for large architectural applications. Housing adjusts in frame to accommodate up to 2� ceiling thickness.

Installation:
Designed for architectural buildings. Easily installed with hanger bars (ordered separately for specific application type). Light engine installed into frame.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2� trade size conduit knockouts and four pry-out knockout slots for easy romex installation.

Hanger Bars: Hanger bars ordered separately as FB27: Set of two 27� hanger bars for wood construction or CH26: Set of two 26� C-Channel hanger bars for T-Bar Ceiling.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.9.
Can be specified with Lutron drivers for specific applications.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Flicker-Free Dimming.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings:
cULus Listed for Damp Location. cULus Listed for Wet Location with select trims. cULus Listed for Direct Contact with Insulation and Combustible Material for units up to 2000 lm. cULus Listed for Feed Through. ENERGY STAR® Certified.

Warranty:
ELCO Products are built to last. 5-year Limited warranty.
