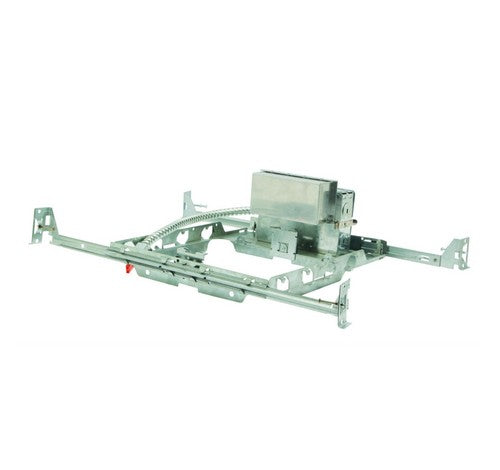

ELCO Lighting E8SQLFU15 19W 8" New Construction LED IC Housing

8" Square LED Light Compatible Engine Frame with driver for IC New Construction used with 8" LED Insert

FEATURES :

• Frame with driver for IC New Construction to be used with 8" LED Insert.

• High efficiency driver mounted on J-Box.

• UL listed for damp location and for feed through.

• Meets restricted airflow requirements (Per ASTM E-283).

• CA Title 24 compliant.


SPECIFICATIONS :

• Wattage : 19W

• Voltage : 120/277V

• Dimmable : Triac/ELV

• Damp Location : Listed

Construction:
IC Rated for Direct Contact with Insulation.
Stamped galvanized steel frame.

Installation:
Designed for ceiling plenums where 2x6 joists or taller are used.
Suitable for T-grid and drop ceiling applications.
Driver mounted on junction box for cooler LED operation.

Junction Box: 16 gauge pre-wired galvanized steel Junction Box, 25 cubic-inch for a maximum of (8) #12 AWG wires. Positioned to accommodate straight conduit runs. Furnished with seven 1/2 trade size conduit pry-out knockouts, four 3/4 pry-out knockouts, one 1" pry-out knockout and (4) Romex pry-outs with strain relief. Strain clamps to install or remove covers for easy access and grounding.

Hanger Bars: Pre Installed high strength hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-Bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical:
Driver is rated for 120/277V.
High efficiency, high power factor > 0.9 driver.

Dimmability:
Flicker-Free Dimming.
For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last. 5-year Limited warranty.

Labels and Listings:
UL/cUL Listed for Damp Location.
Listed for Direct Contact with Insulation and Combustible Material
Listed for Feed Through.
Inserts meet restricted air flow requirements (Per ASTM E-283).
