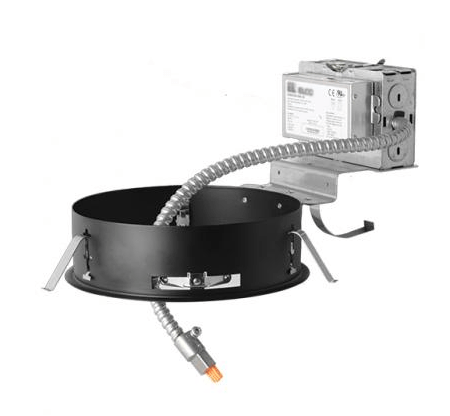

Elco Lighting 8" Remodel Frame with Driver, Lumens 4000 lm, Voltage 120-277V, Gen 2, Dimming Triac/ELV/0-10V, 12W Emer. Backup

FEATURES :

Optional 90 minutes, 120/277 VAC, 60Hz Emergency Backup.
USA designed and assembled.
LED Light Engine sold separately (see Compatible Trims).
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible

SPECIFICATIONS :

Lumens 4000 lm
Voltage 120/277V
Dimmable Triac/ELV/0-10V
Power Factor €°¥0.9
Damp Location Listed

Technical Details:

Construction: Constructed from 16 gauge galvanized steel for commercial building applications.

Installation: Remodel clips hold housing sturdily into place.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2� trade size conduit knockouts and four pry-out knockout slots for easy romex installation.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.9.
Can be specified with Lutron drivers for specific applications.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Flicker-Free Dimming.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings: cULus Listed for Damp Location. cULus Listed for Wet Location with select trims. cULus Listed for Direct Contact with Insulation and Combustible Material for units up to 2000 lm. cULus Listed for Feed Through.

Warranty: ELCO Products are built to last. 5-year Limited warranty.
