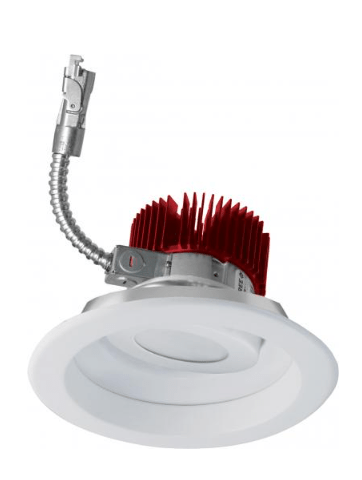

Elco Lighting E818L6035W2 8" Adjustable LED Light Engine Trims 71.4, 3500K, 6000lm, Beam Angle 60° - White Finish

Elco Lighting 8" Adjustable LED Light Engine Trims. Wattage 71.4, Color Temperature 3500K, Lumens 6000 lm, Beam Angle 60°, All White

FEATURES :

Dimmable Triac/ELV or 0-10V.
USA Designed and Assembled.
Frame sold separately (see Compatible Housings).
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible

SPECIFICATIONS :

Wattage 71.4W
Lumens 6000 lm
Color Temp. 3500K
Lamp Type LED
Beam Angle 60°
CRI 93+
Wet Location Listed

Technical Details:

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED technology.

Reflector Construction: Reflector is one piece, deep, self-flanged construction spun from .05� thick High Grade Aluminum. Integral gimbal ring has adjustability up to ±35° ideal for sloped ceilings and wall wash applications.

Installation: Must be installed on a Laurel System frame with compatible lumen rating. Frames are available for New Construction, Remodel and as a Retrofit Kit.

LED Technology:
Extremely accurate Color Rendering Index of 93+ CRI.
Efficacy of >90 lumens per watt.
Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixilation.

Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT) attribute.

Listings: cULus Listed for Wet Location. RoHS Compliant.

Warranty: ELCO Products are built to last. 5-year Limited warranty.
