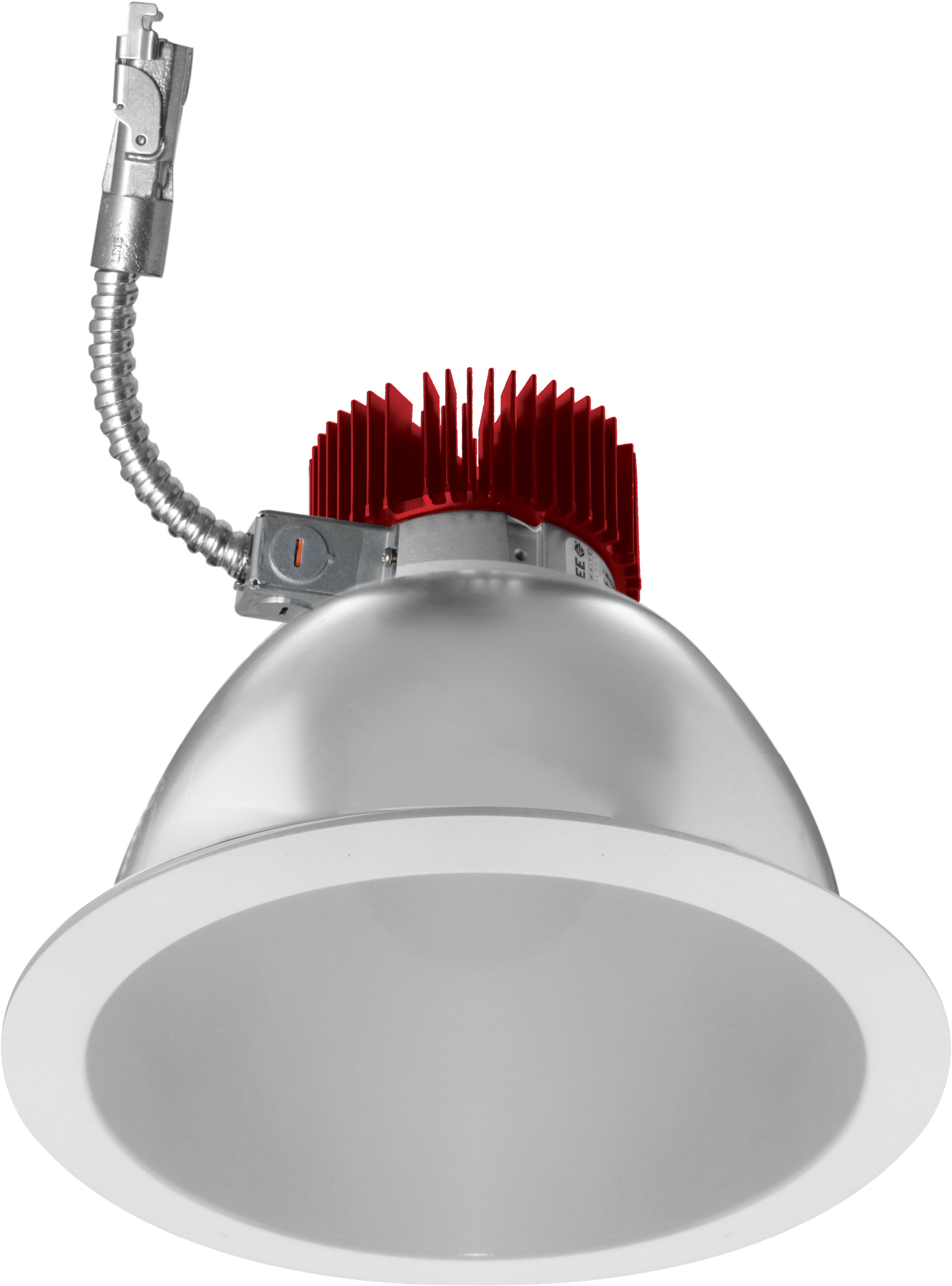

Elco Lighting E810L1630W2 8" Reflector LED Light Engine Trims, 18W, 1600lm, 3000K - White Finish

This 8" Reflector LED Light Engine Trim delivers 1600 lumens with 18W power consumption and a 3000K color temperature for warm, consistent lighting. Designed for wet locations, it features a 60° beam angle and a high CRI of 93+ for superior color accuracy. Finished in all white for a clean, modern look.

Specifications:

Manufacturer Name: Elco Lighting
SKU: E810L1630W2
Wattage: 18W
Lumens (lm): 1600 lm
Correlated Color Temperature (CCT): 3000K
Lamp Type: LED
Beam Angle: 60°
Color Rendering Index (CRI): 93+
Location Rating: Wet Rated
Certification: Listed
Finish: All White

Features:

Dimmable Triac/ELV or 0-10V.
USA Designed and Assembled.
Frame sold separately (see Compatible Housings).
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.
