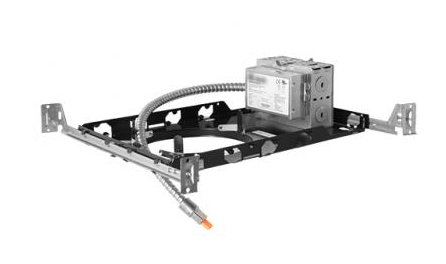

Elco Lighting E6LFU20S 6" New Construction Plaster Frame with Driver, 29.4W, 2000lm, 120/277V

FEATURES :

Optional 90 minutes, 120/277 VAC, 60Hz Emergency Backup.
USA designed and assembled.
LED Light Engine sold separately (see Compatible Trims).
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible

SPECIFICATION:

Wattage 29.4 MAX.W
Lumens 2000 lm
Voltage 120/277V
Dimmable Sunset
Power Factor ‰¥0.9
Damp Location Listed

Technical Details:

Construction:
Constructed from 16 gauge galvanized steel for commercial building applications.

Installation:
High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2� trade size conduit knockouts and four pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.9.
Can be specified with Lutron drivers for specific applications.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver to 1%. Flicker-Free Dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings: cULus Listed for Damp Location. cULus Listed for Wet Location with select trims. cULus Listed for Direct Contact with Insulation and Combustible Material for units up to 2000 lm. cULus Listed for Feed Through.

Warranty: ELCO Products are built to last. 5-year Limited warranty.
