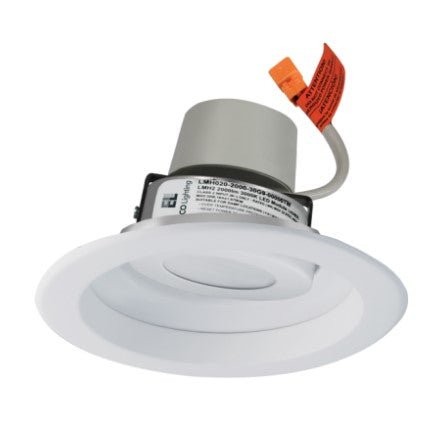

ELCO Lighting E617R12SDW 6 Inches Round Adjustable Reflector Trim with LED Module & Driver 15.7W, 1250lm - White Finish

The perfect lighting solution for high-end residential projects with existing housing.

Features:

• Module includes LED Module Driver.

• Triac/ELV dimming.

• Life span of 50,000 hours L70.

• USA designed and assembled.

• Limited 5 year warranty.


Specifications:

• Wattage 15.7W

• Lumens 1250 lm

• Voltage 120V

• Color Temp. SunsetK

• Dimmable Triac/ELV

• Lamp Type LED

• Beam Angle 60°

• CRI 93+

• Wet Location Listed



Technical Details:

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Trim Construction: Reflector is two piece trim for maximum color versatility. Design allows for minimal glare and a strong glare cut-off. Trim is constructed of metal for lasting durability.

Compatible Housings: EL76FICA, EL770ICA, EL770RICA.

LED Technology:
Extremely accurate Color Rendering Index of 93+.
Efficacy of 97 lumens per watt.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixelation.

Listings:
UL Listed for Wet Location.
RoHS Compliant.
California Title 24 (JA8-2016-E).

Download PDF File

Specification
