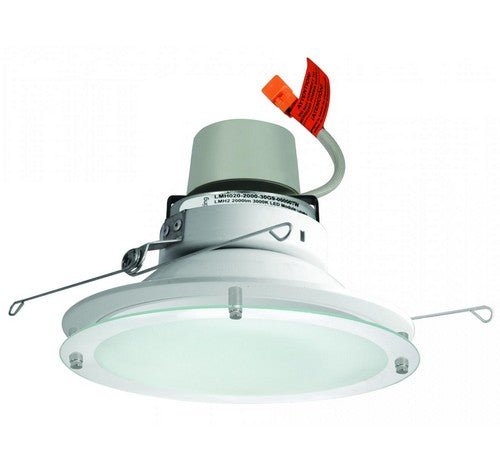

ELCO Lighting E612R0830W Cedar System Contemporary 6 Inch Drop Glass Reflector 850lm 3000K - White Finish

6 Drop Glass Reflector.The perfect lighting solution for high-end residential projects with existing housings.

FEATURES :

• Module includes LED Module Driver.

• Frosted acrylic lens for even lumen distribution.

• USA designed and assembled

• Title 24 compliant

• Life span of 50,000 hours L70

• Limited 5 year warranty


SPECIFICATIONS :

• Wattage 10.5W - 15.7W

• Lumens 850 lm - 1250 lm

• Voltage 120V

• Color Temp. 2700K - SunsetK

• Dimmable Triac/ELV

• Lamp Type LED

• Beam Angle 60°

• CRI 93+

• Wet Location Listed

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology

Trim Construction: Reflector is two piece trim for maximum color versatility. Design allows for minimal glare and a strong glare cut-off. Trim is constructed of metal for lasting durability.

LED Technology:
Extremely accurate Color Rendering Index of 93+.
Efficacy of 97 lumens per watt.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing ELCO Red heat sink.
Instant On to Full Brightness technology.
No LED pixilation.

Listings:
UL Listed for Wet Location.
RoHS Compliant.
ENERGY STAR® Certified.
California Title 24 (JA8-2016).

Download PDF File

Specification
