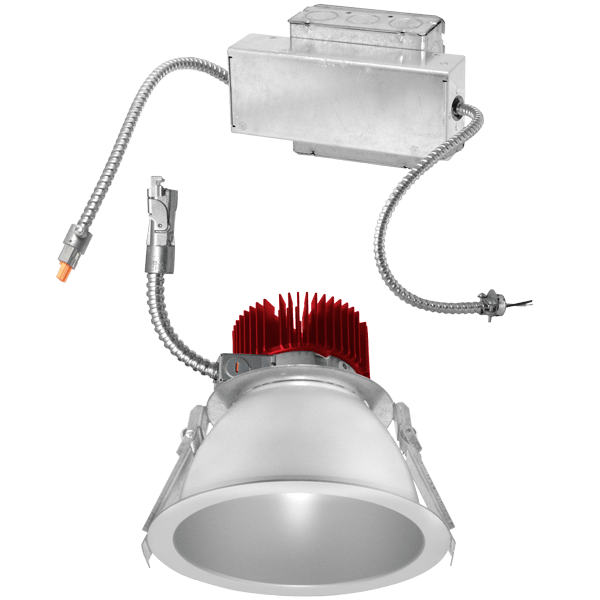

Elco Lighting E610TF1227DW 6" Retrofit Kit Reflector LED Light Engine Trim with Driver 12.8W, 1250lm, 2700K, 60° Beam - White Finish

The 6" Retrofit Kit Reflector LED Light Engine Trim with Driver delivers efficient and reliable illumination with 12.8W power consumption and 1250 lumens of brightness at 2700K color temperature. Designed for seamless retrofitting, it features easy mounting brackets for quick installation. The 60° beam angle ensures wide light distribution, while the Triac/ELV/0-10V dimming capability offers precise brightness control. Built for wet locations, this USA-designed and assembled kit includes a retrofit driver and flex with an optional 90-minute emergency backup for added reliability. Power factor ‰¥0.9 ensures high energy efficiency, making it an ideal choice for various commercial and residential applications.

Specifications:

Manufacturer Name: Elco Lighting
SKU: E610TF1227DW
Wattage: 12.8W
Lumens: 1250 lm
Color Temp.: 2700K
Dimmable: Triac/ELV/0-10V
Voltage: 120/277V
Lamp Type: LED
Beam Angle: 60°
Power Factor: ‰¥0.9
Location Rating: Wet Location Listed
Easy mounting brackets designed for retrofit applications
Includes retrofit driver and flex
Optional 90-minute, 120/277 VAC, 60Hz Emergency Backup
USA Designed and Assembled
