ELCO Lighting E5SQLFU11 5" IC Shallow Frame with Driver 1100lm Maple Light Engines

5" IC Frame for Maplež¢ System LED Light Engines. For use in Insulted Ceilings, Damp Location rated and Wet Location rated with applicable LED Light Engines.

FEATURES :

For use in Insulated Ceilings with ELCO 5" Maplež¢ System LED Light Engines.
Dimmable Triac/ELV (1100 lm units), 0-10V (2000 lm units).
Optional Emergency Backup 90 minutes, 120/277 VAC, 60Hz.
High Efficiency Driver mounted on J-box for greater lumen output and easy access from below the ceiling.
Suitable for wet location covered ceiling only with E520/E524 Light Engines (ordered separately).

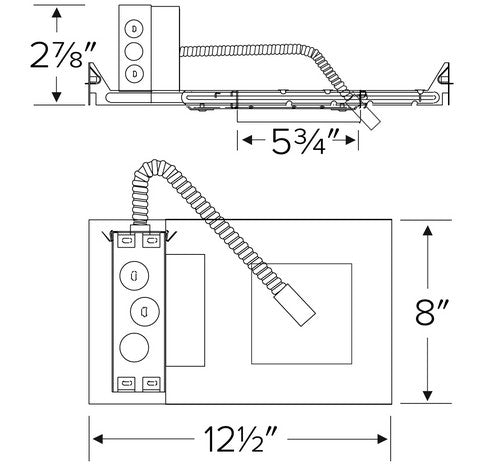

2¦ž" Height Allows for installation in shallow ceilings (when used with non adjustable light engines).
ENERGY STAR® Certified. California Title 24 (JA8-2016).

SPECIFICATIONS :

• Wattage : 16W - 28W

• Voltage : 120/277V

• Dimmable : Triac/ELV or 0-10V

• Wet Location : Listed with E520/E524 Inserts

• Damp Location : Listed

Construction: IC Rated for Direct Contact with Insulation with E52 Maplež¢ System LED Light Engines. Stamped galvanized steel frame.

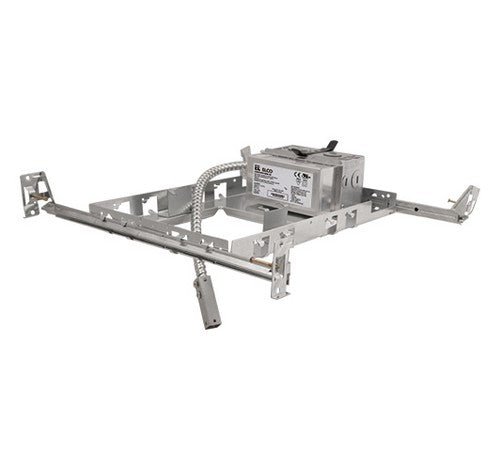

Installation: Designed for shallow ceiling plenums where 2x4 joists or taller are used. Suitable for T-grid and drop ceiling applications. Driver mounted on junction box for cooler LED operation.

Junction Box: 16 gauge pre-wired galvanized steel Junction Box, 25 cubic-inch for a maximum of (8) #12 AWG wires. Positioned to accommodate straight conduit runs. Furnished with seven 1/2‚¬� trade size conduit pry-out knockouts, four 3/4‚¬� pry-out knockouts, one 1" pry-out knockout and (4) Romex pry-outs with strain relief. Strain clamps to install or remove covers for easy access and grounding.

Hanger Bars: Pre Installed high strength hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-Bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical: Driver is rated for 120V and 277V input (120/277V). High efficiency, high power factor > 0.9 driver.

Dimmability: Flicker-Free Dimming. E5SQLFU11 works with Triac/ELV type dimmers. E5SQLFU20 works with 0-10V dimmers. Smoothly dims down to 10%. (Dimming range may vary depending on dimmer model). For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last. 5-year Limited warranty.

Labels and Listings:
UL/cUL Listed for Damp Location and for Wet Location with select light engines;
Listed for Direct Contact with Insulation and Combustible Material;
Listed for Feed Through.
Inserts meet restricted air flow requirements (Per ASTM E-283).
