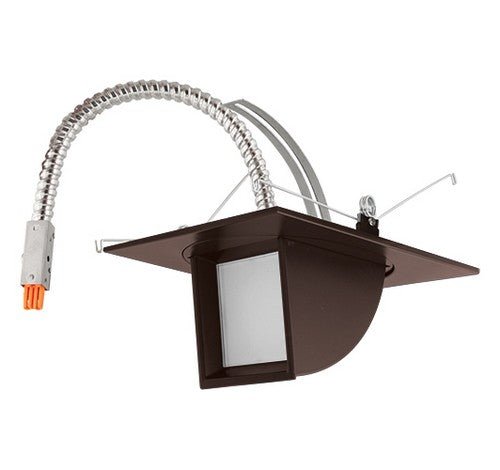

ELCO Lighting E523L1130BZ 5" Adjustable Pull Down LED Light Engine - Bronze Finish

ELCO Lighting 's Maple System is the perfect luminaire for commercial, hospitality and multi-stow applications. The system is offered with a plaster frame and four different LED light engines in a variety of lumen outputs and color temperatures. As newer structures are being designed with smaller plenum spaces between floors this product has been engineered to be as shallow as possible to fit almost any above ceiling space while maintaining strong lumen output and light quality.

FEATURES :

• Frosted Lens provides smooth lumen distribution and eliminates LED pixilation.

• ENERGY STAR® Certified. California Title 24 (JA8-2016).

• Life Span of 50,000 Hours L70.

• Deep set LED reduces glare while providing area illumination.

• Compatible with ELCO Maple system frame.


SPECIFICATIONS :

• Wattage : 16W

• Lumens : 1100 lm

• Color Temp. : 3000K - 4000K

• Lamp Type : LED

• Beam Angle : 100°

• CRI : 93+

• Damp Location : Listed

Optics: Polycarbonate diffuser with internal reflector create a uniform light distribution with minimal glare.

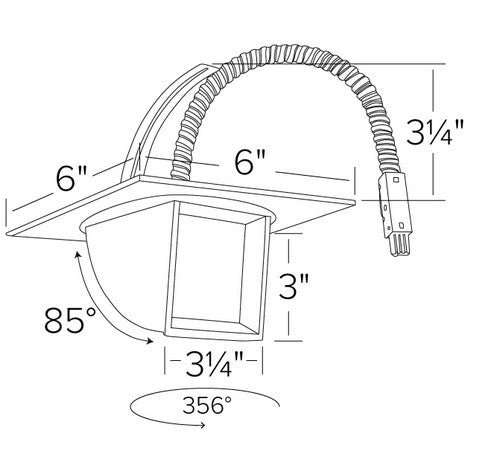

Construction: IC Rated for Direct Contact with Insulation in E5SQLFU20 Housing. Diecast aluminum heatsink for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking. Adjustable pull down to 85°.

Electrical: 2000 lumen uses 26W.

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Efficacy of 77 lumens per watt. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing aluminum heat sink.

Dimmability:
Flicker-Free Dimming.
E5SQLFU20 works with 0-10V dimmers with 2000 Lumen Light Engine.
Smoothly dims down to 10%. (Dimming range may vary depending on dimmer model).
For full list of dimmers refer to the Dimmer Compatibility List.

Warranty: ELCO Products are built to last. 5-year Limited warranty.

Labels and Listings:
UL/cUL Listed for Damp Location.
UL Listed for Direct Contact with Insulation and Combustible Material.
ENERGY STAR® Certified.
California Title 24 (JA8-2016).
Certified under ASTM-E283 for Air Tight Construction.
