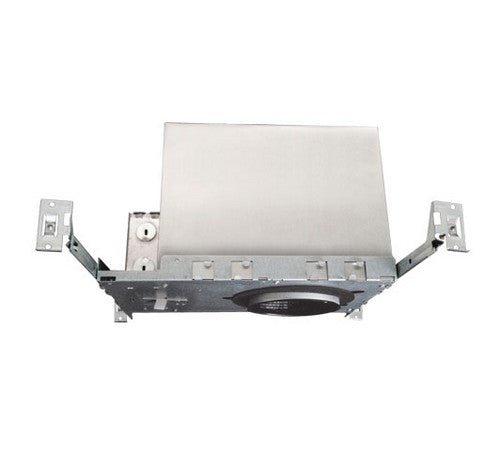

ELCO Lighting E4TL12ICA 4 Inch Trimless Cedar System New Construction IC Airtight Housing w/Driver 1200 Lumens Triac/ELV 120V

4" Trimless Cedar System New Construction IC Airtight Housing w/Driver IC Airtight housing for trimless, high-end residential and light commercial, 850-1600 lumens.

FEATURES:

• UL Listed for direct contact with insulation.

• Compatible with 2 x 8 construction.

• Optional 90 minutes, 120/277 VAC, 60Hz, Emergency
  Backup.

• ENERGY STAR® Certified.

• Flicker-Free Dimming.

• USA designed and assembled.

• Limited 5 year warranty.

• For use with ELCO Cedarž¢ System 4" Trimless LED
  Light Engines.


SPECIFICATIONS :

• Lumens 850 lm - 1600 lm

• Voltage 120/277V or 120V

• Dimmable Triac/ELV,

• Triac/ELV/0-10V, Sunset

• Power Factor °¥0.95

• Damp Location Listed

Construction

For use in IC and non-IC conditions. Up to 1600 lumens.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation

Designed for ceiling plenums where 2x6 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box:

Positioned to accommodate straight conduit runs. Two 3/4‚¬� knockouts, Seven 1/2‚¬� trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars

Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical

Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability

3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List

Listings

: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through..
