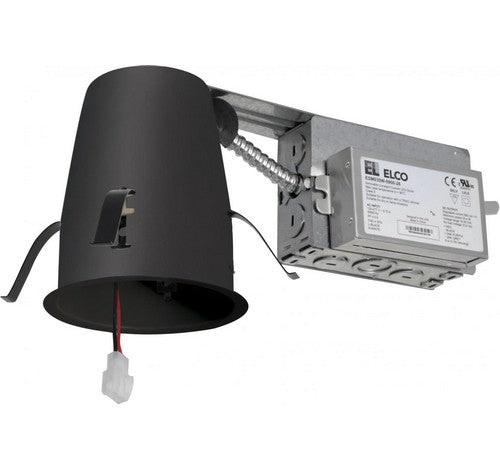

4" Cedar System Non-IC Remodel Housing w/Driver.Non-IC Airtight remodel housing for high-end residential and light commercial, 850 to 1250 lumens.

FEATURES:

Optional 90 minutes, 120/277 VAC, 60Hz, Emergency
Backup.
ENERGY STAR® Certified.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedarž System 4" LED Light
Engines.

SPECIFICATIONS :

• Lumens 850 lm - 1250 lm

• Voltage 120/277V or 120V

• Dimmable Triac/ELV,

• Triac/ELV/0-10V, Sunset

• Power Factor °¥0.95

• Damp Location Listed

Construction

Non-IC Frame for non-IC conditions.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation

Designed for ceiling plenums where 2x6 joists or taller are used.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box

Positioned to accommodate straight conduit runs. Two 3/4€š¬� knockouts, Seven 1/2€š¬� trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Electrical

Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability

3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For full list of dimmers refer to the Dimmer Compatibility List.

Listings

UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Feed Through.
