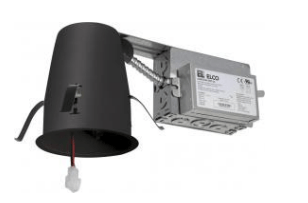

IC Airtight remodel housing for high-end residential and light commercial, 850 lumens.

Features:

• UL Listed for direct contact with insulation.

• Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.

• Flicker-Free Dimming.

• USA designed and assembled.

• Limited 5 year warranty.

• For use with ELCO Cedarž System 4" LED Light Engines.

• 2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen
• 1 are not cross compatible.

Specifications

• Lumens 850 lm

• Voltage 120/277V or 120V

• Dimmable Triac/ELV,

• Triac/ELV/0-10V, Sunset

• Power Factor °¥0.95

• Damp Location Listed

Construction: Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. Up to 850 lumens. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4€š¬� knockouts, Seven 1/2€š¬� trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 1% with compatible dimmer. Can be specified with Lutron drivers for specific applications. For full list of dimmers refer to the Dimmer Compatibility List.

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through.
